Industrial Wireless

Wireless Ethernet Wireless safeTY WIRELESS PROFIBUS Wireless CAN WirelessPLC/IO Antennas

Industrial Wireless – Secure data transmission by radio

Experience secure and reliable data transmission for industrial applications with the innovative DATAEAGLE radio system. For over 40 years, our customers have benefited from our experience in the field of industrial automation technology in combination with wireless.

Requirements for industrial wireless solutions

Industrial wireless solutions must meet a number of requirements to function efficiently and reliably in a manufacturing environment. First, they must be robust and reliable to ensure they do not fail over time. They must also support a high data rate to meet the demands of manufacturing processes. In addition, they must have low latency to ensure that data is transferred quickly and automation technology requirements are achieved.

Another important factor to consider when selecting an industrial wireless solution is range. A good wireless solution must have sufficient range to ensure that data can be transmitted throughout the manufacturing environment. In addition, the wireless solution must support a high bandwidth to ensure continuous data transmission.

Stable radio connection in focus

Especially applications in automation technology with rotating or linear motion are predestined for industrial wireless solutions. From our experience, we know that the choice of wireless technology and the frequency used depends on various factors that are ultimately responsible for whether the system runs stably.

Our DATAEAGLE wireless system is the solution that meets all the requirements for industrial wireless solutions. With the modern radio technology and simple setup, it is child’s play to keep the connections reliable and secure. Experience unsurpassed radio quality and fast and secure data transmission. With DATAEAGLE you have the best radio technology for your industrial applications. We work with Bluetooth 5 (2.4 GHz) and 869/915 MHz radio technologies.

Industrial Wireless – Bluetooth 5 as a robust wireless technology

We have been working with Bluetooth in mechanical and plant engineering as a communication solution for industrial wireless for over 20 years. Bluetooth is extremely resistant to interference in the frequency band and enables reliable operation in parallel with other Bluetooth or WLAN applications. The result is reliable and safe wireless connections for fieldbus communication and are therefore also suitable for safety communication, e.g. PROFIsafe CIP Safety.

We check the following points for every Industrial Wireless project: Network topology, security, range, compatibility, cost and reliability. Each of these points is important for your project to be successful!

  • Data transmission

    The type of data to be transmitted and therefore the packet size, e.g. I/O data or image or video.

  • Performance

    The application’s requirements for system performance and data size.

  • Approvals

    The country of use of the radio system plays a decisive role, as there are different approvals and guidelines per country.

Read more in our in-depth blog article: How to find the right radio system for every application

Plug&Pray? Not with DATAEAGLE

Find out why over 500 companies trust our radio technology! We offer reliable and innovative radio systems that will work reliably for decades. Let us convince you of our radio technology and benefit from our impeccable service.

Convince yourself and test the radio data transmission system in your application for 4 weeks free of charge.

Test system request
New call-to-action

Take your production to a new level

DATAEAGLE radio data transmission systems is the alternative technology to slip rings, mobile trailing cables and optical data transmission systems. Various protocols are covered in different device families DATAEAGLE 1000 to 6000: serial (RS232/485), IO modules, PROFIBUS, PROFINET, PROFIsafe, EtherNET/IP and CIP Safety, openSAFETY via UDP, CAN and CANopen, IO-Link and Ethernet. With our radio data transmission systems, you can achieve fast and reliable data transmission over long distances without having to compromise on data quality or reliability.

You can read more about radio compared to other wireless data transmission technologies in our blog article.

Wireless communication as an alternative to cable

Industrial Wireless Systeme - Products - DATAEAGLE - Schildknecht AG

Industrial Wireless – unique in the market

What our customers appreciate most is, on the one hand, the Plug & Play functionality, because from the control system’s point of view, the radio link behaves like a cable and therefore does not need to be parameterised. On the other hand, the high availability of the patented DATAEAGLE industrial wireless solution is also convincing in safety applications, using PROFIsafe or CIPSafety, and enables smooth operation without downtimes due to radio interruptions. Give your wireless solution that little bit extra: with the Schildknecht commissioning guarantee, you receive professional, powerful and convincing support during installation. The DATAEAGLE radio data systems stand for a long service life, freedom from maintenance and guarantee a stable connection between controls and IO modules for permanent availability of machines and systems without downtimes.

Convince yourself and test our radio systems free of charge and live in your application!

  • Patented radio technology

    The intelligent radio system DATAEAGLE ensures stable communication without data packet loss thanks to pre-processing of the data packets.

  • Plug-&-Play

    Easy assembly & installation: Wireless solutions from Schildknecht can be exchanged 1:1 for existing cables.

  • Diagnostic functionality

    The free DATAEAGLE Wizard software allows you to integrate the radio systems into your network diagnostics and perform.

  • No software configuration

    The device description files GSDML (PROFINET) do not need to be changed.

DATAEAGLE – DATENFUNKSYSTEME DER SCHILDKNECHT AG

Industrial Wireless – Connectivity without limits! For over 40 years, at the same time as PROFIBUS, Schildknecht AG has been a device manufacturer and system provider for industrial wireless data transmission. The core competence lies in patented, highly stable radio transmission of data, as required in crane and stage technology, water management and cable cars or self-propelled transport vehicles (AGVs), among others. Further demand is currently arising in the context of IIoT or Industry 4.0. Schildknecht is developing radio data transmission systems for use with PROFINET, PROFIBUS or PROFIsafe using Bluetooth or mobile radio (2G, 3G, 4G) under the DATAEAGLE product brand for this diverse “wireless market”.

Experience the advantages of modern radio systems from Schildknecht. Benefit from our many years of experience in a wide range of industrial sectors and enjoy individual software and hardware solutions that meet your requirements. Receive project-related advice to make your radio solutions more attractive. Take advantage of our expertise and turn your ideas into reality!

Radio Data System Manufacturer - Schildknecht AG

STB Steuerungstechnik Beck

“The lift was approved for operation by TÜV without any rework shortly before the Four Hills Tournament. “After the first 2 years, we found that the availability of the lift was almost 100%.”

Ralph Püschel, Kabel Sterner GmbH

“We were initially somewhat sceptical about the changeover from slip ring to radio technology, given the special requirements. However, the prospect of greater operational reliability made us take this step after all, and we were not disappointed.”

Steffen Boschert, Owner SWL

“We were very satisfied with the quality and reliability of the radio systems used and especially the support from Schildknecht. With the radio modules used, the required safety standards according to DIN 56950-1 1 could be achieved.”

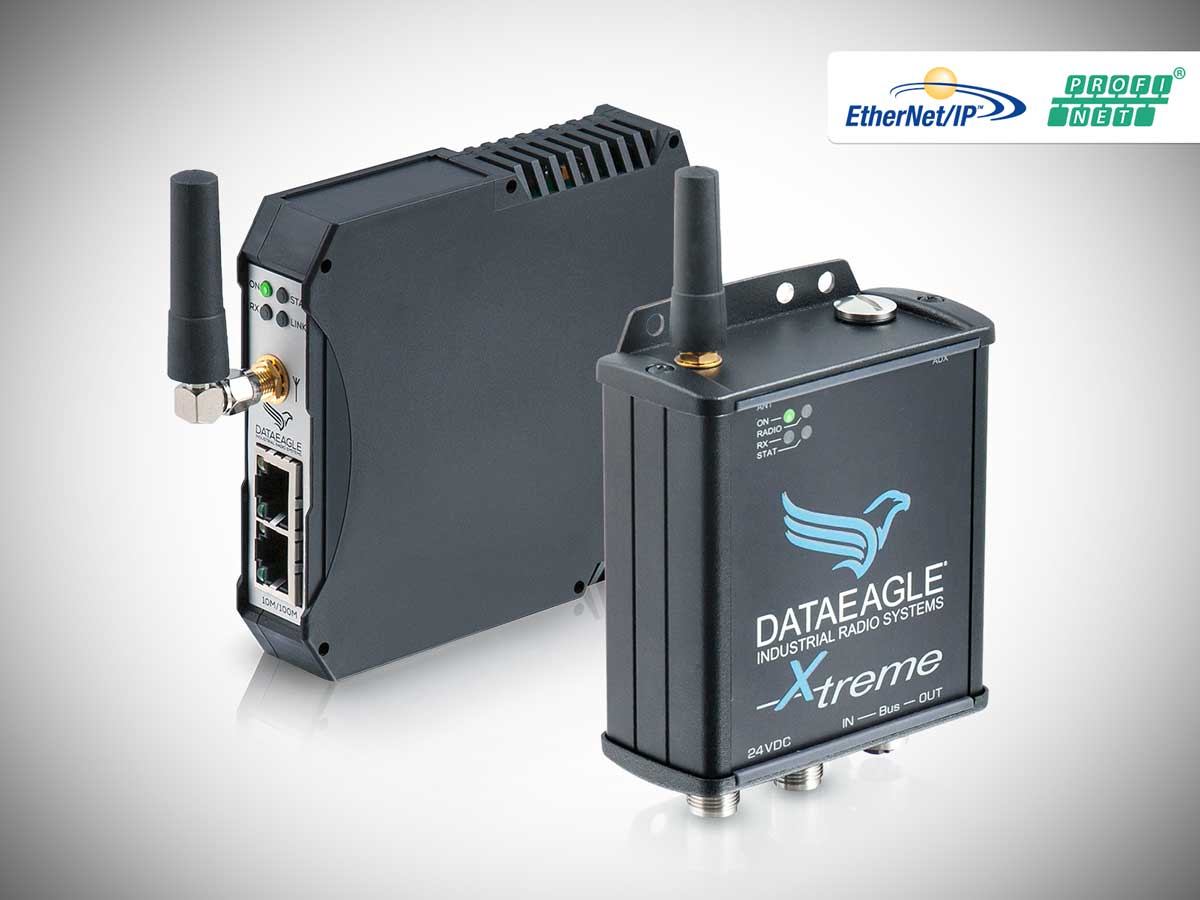

Wireless Ethernet – DATAEAGLE 4000

The latest product – the DATAEAGLE 4000 – is best suited for use in Ethernet networks, where it supports wireless transmission of the PROFINET and EtherNET/IP protocols. Depending on the application, Bluetooth 5 wireless technology is used in most cases, as it provides the stability and speed required in industrial automation solutions.

Discover all products and variants of the WIRELESS ETHERNET radio data transmission systems here.

to Wireless Ethernet

Wireless PROFIBUS – DATAEAGLE 3000

The very first product to integrate patented data pre-processing is the DATAEAGLE 3000, laying the foundation for the unique DATAEAGLE wireless data solution, which has made a name for itself in the market through stable data transmission. DATAEAGLE 3000 devices support PROFIBUS and PROFIsafe and have been in use worldwide for over 20 years.

Discover all products and variants of the WIRELESS PROFIBUS radio data transmission systems here.

to Wireless Profibus

Wireless SAFETY – DATAEAGLE 3000 and 4000

From our point of view, wireless safety applications are the supreme discipline, because the time requirements of safety protocols such as PROFIsafe, CIPSafety or openSAFETY cannot actually be met by a normal wireless solution. Nevertheless, with our patented pre-processing, we have created a system that not only makes WIRELESS safety applications possible, but also enables stable and secure data communication.

The DATAEAGLE 3000 and 4000 radio systems are used in inclined lifts, cranes, transport systems and many other applications.

Discover all products and variants of the WIRELESS SAFETY radio data transmission systems here.

Wireless Safety - PROFIsafe, CIP Safety und openSAFETY
to Wireless Safety

Wireless CAN and CANopen – DATAEAGLE 6000

Wireless CAN enables the transmission of the CAN and CANopen protocols and, like all our DATAEAGLE radio data transmission systems, offers many useful features. Our Plug & Play technology is also implemented in the DATAEAGLE 6000 devices and also has an autobauding function that makes automatic detection of the baud rate possible.

Discover all products and variants of the WIRELESS CAN radio data transmission systems here.

to Wireless CAN

Wireless I/O

The DATAEAGLE 2000 series allows you to establish wireless IO-IO, IO-fieldbus or fieldbus-fieldbus communication. They function as basic devices and are combined with various IO cards or fieldbus interfaces to obtain a robust wireless solution. Depending on the radio technology used, our radio data systems can transmit data over distances of up to 3 km.

Discover all products and variants of the WIRELESS IO & PLC radio data transmission systems here.

Wireless PLC / IO - DATAEAGLE Compact 2710
to Wireless PLC / IO

Wireless I/O and IoT Sensor Solutions

The IP67 rated device is suitable for transmission over a distance of up to 70m. It is equipped with Bluetooth Low Energy and has several options for I/O and sensor communication. This plug & play solution has an integrated antenna and is available in different sets. In this way, I/O values from sensors can be transmitted as a cable substitute or wirelessly integrated into the control via fieldbus.

Discover the robust wireless I/O modules here.

Discover our IoT and sensor solutions here.

Cable Replacement instead of Cable Clutter • DATAEAGLE X-treme IO 2730
to Wireless PLC/IO
IoT & Sensor Solutions

Antenna technology and accessories

Antennas and antenna cables have a strong influence on the quality of a radio connection, which is why we recommend using high-quality antennas and also antenna cables for all applications. In addition, we advise which antenna is best suited for the respective application. In addition to omnidirectional antennas, there are directional antennas that can be used to significantly increase the range of a point-to-point connection, for example.

Discover all products from the antenna range here. There you will also find the comprehensive Antennas 1Mal1 with lots of valuable and practical information.

Antennen
to antenna technology
New call-to-action
Zubair Khan

Zubair Khan

Industrial Wireless Expert

If you have any questions about our products, please do not hesitate to contact me.

zubair.khan@schildknecht.ag
+49 7144 89718-22

Schildknecht AG - Datenfunksysteme

FAQ

Do I have to integrate the radio via the device description file?

No. The DATAEAGLE radio data transmission systems from Schildknecht do not have to be integrated into the control system via a device description file (e.g. GSDML for PROFINET or GSD for PROFIBUS). They act like a cable substitute and are transparent in communication. However, the devices can optionally be integrated into the PLC to activate the integrated diagnostics of the radio data systems. The diagnostic data provides information about radio interruptions or connection setups in the event of interruptions, allowing problems in the system such as defective cables or antennas to be detected.

Replacing cables with radio data transmission – without changes to the machine
Important for easy replacement of the solution for data transmission: If possible, nothing should have to be changed in the general setup of the machine or system. Often, the timing settings of PROFIBUS or PROFINET have proven themselves, fulfill important safety requirements, or require new approvals from TÜV and the like when they are adapted. This must be prevented. Wireless solutions often work with update times in the range of 16-32 milliseconds, while an update time of 1-2 milliseconds is common for PROFINET. Replacing it with such a solution would require intervention in the machine control system and thus possibly extensive testing and acceptance.

Wireless solutions from Schildknecht can be replaced 1:1 with existing cable or slip ring systems – without any changes to the machine. The replacement can be carried out quickly and easily by a company electrician, and extensive adjustments or re-certifications are not required.

With DATAEAGLE, no integration of data transmission into the hardware configuration is necessary. The device description files GSD (PROFIBUS) or GSDML (PROFINET) do not have to be changed and the “cable” configuration can be retained.

You still encounter questions during installation? Then the Schildknecht commissioning guarantee will help!

What distances are possible with wireless PROFIBUS communication?

Depending on the choice of radio technology, a radio system can achieve a range of between a few metres and approx. 3 km. The line of sight and the antennas play a major role here. With DATAEAGLE radio systems, wireless PROFIBUS communication with (869MHZ (Europe) / 915 MHz (America) up to 3 km and with Bluetooth (worldwide usable) up to 1 km are possible.

– More about this in our product information/technical data

What does Black Channel mean?

What does Black Channel mean?

The black channel principle allows the transmission of safe and non-safe process data over the same network or bus line. Regardless of the regular data transport mechanism used on this line, safety components can transmit data using an isolated safe protocol that tunnels through the underlying network channel. Since safe fieldbuses are pure application protocols without their own physical properties, the available bandwidths and cycle times depend on the data transport protocol used. Possible transmission errors are known and are listed in the relevant standards IEC 61784-3 and IEC 61508.

Black Channel explained in detail!

What does this mean for PROFIsafe?

The PROFIsafe protocol has no repercussions on the standard bus protocols. It is intended to be as independent as possible of the respective transmission channel, whether copper cable, fiber optic cable, backplane bus, or wireless. Neither the transmission rates nor the respective error detection plays a role. For PROFIsafe, the transmission channels are merely “black channels”.



Wireless PROFIsafe - Black Channel Principle

Wireless PROFIsafe – Black Channel Principle



PROFIsafe – same protocol for radio and cable

Whether for a crane control system, the emergency stop transmission of a production machine, or other safety-relevant communication: PROFIsafe has been established as a standard for functionally safe communication and has been an international standard since 2007 under the designation IEC 61784-3-3. The safety-related protocol is used to transmit data between a safety controller (F-PLC or F-Host) and field devices (F-Devices). While the controller and device are usually safety-related components and must be certified accordingly, PROFIsafe, according to the system description, has no effect on the standard bus protocols used: whether with Industrial Ethernet (PROFINET IO), via RS485 (PROFIBUS-DP), via backplanes or wireless – the method used for data transmission has no influence on the safety rating. The transmission channels are merely so-called “black channels”, of which the actual PROFIsafe application is completely independent. Accordingly, the PROFIsafe system description also states: Wireless transmission is permissible as long as sufficient availability (no false alarms) and IT security are guaranteed.



Secure data transmission by radio: the black channel principle in detail

This means that the use of wireless technologies is also provided for and possible by definition, just like other radio technologies. Both the safety controller and the remote IO system – for example a safety switch – contain the safety protocol. The interface between them is merely the channel for transmitting the safety information. Accordingly, no safety certification is required for the wireless device and it is treated like other infrastructure components, such as switches or cables. This makes the recalculation or verification of the safety level (SISTEMA) for using a black channel solution obsolete.



More Informations:

Wireless PROFIsafe – Our Radio Data Systems

Read our Blog Article

Schildknecht
Schildknecht AG
