DATAEAGLE 4000 – Wireless PROFINET
Our product line DATAEAGLE 4000 was developed especially for Wireless PROFINET. With its patented filter technology, the DATAEAGLE 4000 series provides an optimal, reliable radio connection and is designed for many industries. See for yourself!
Wireless PROFINET – in practice

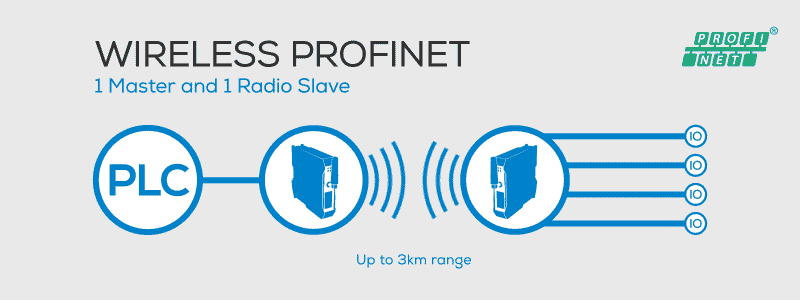

In automation sensor and application data from machines are transmitted from the field level to a central control unit. Moving parts, e.g. in sewage treatment plants or cranes, require wireless communication solutions for the different protocols (fieldbus). Therefore, radio links are used. The DATAEAGLE 4000 modules “speak PROFINET“ and provide for communication in wireless network areas with highest reliability – thanks to their filter function patented by Schildknecht against lost or damaged telegrams. No bus errors anymore cause by interferences!
Wireless PROFINET – Product features

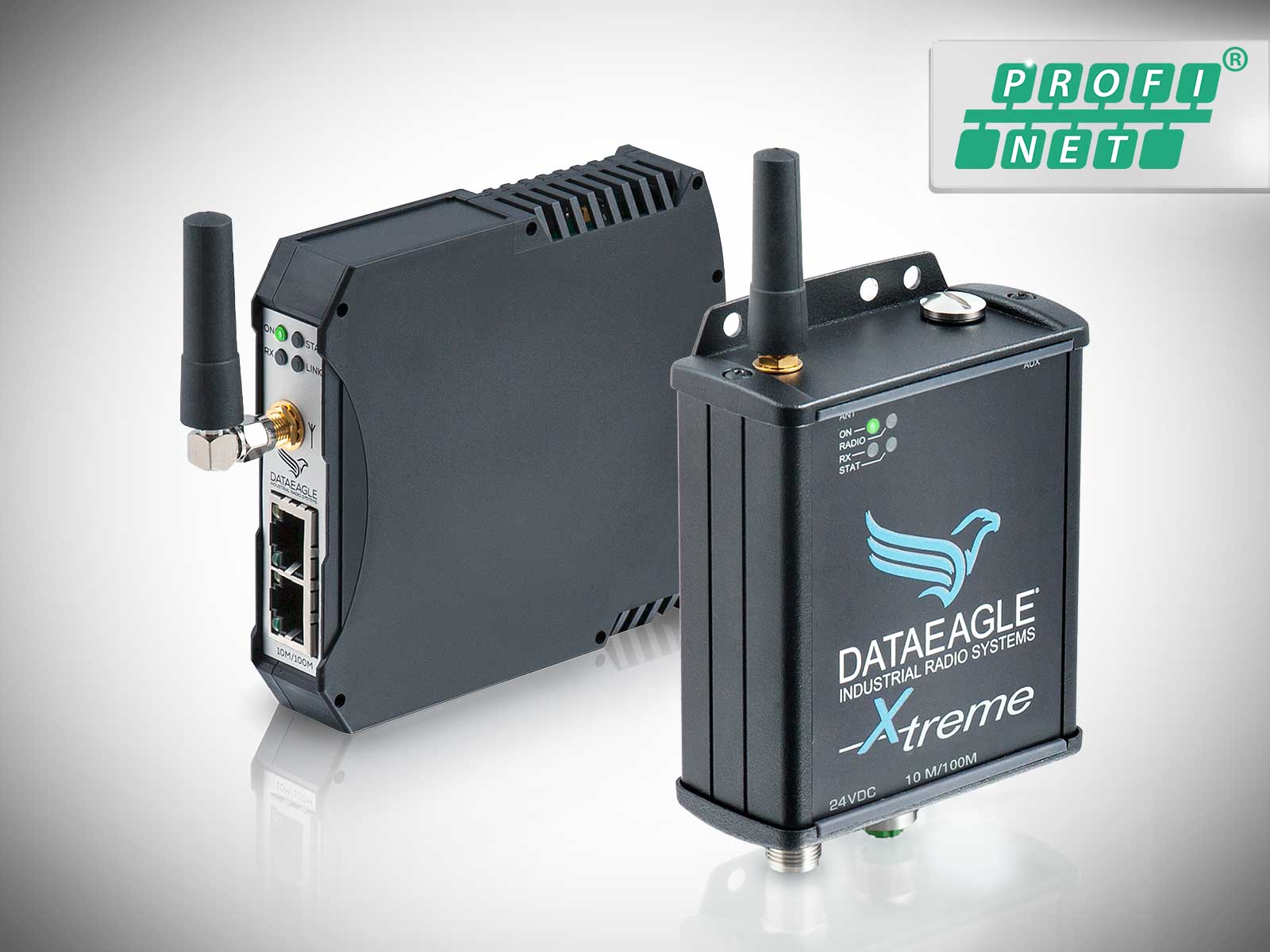

Various radio technologies are used for transmission, mostly Bluetooth 2.4 GHz or 869 / 915 MHz in the licensed band. Our data pre-processing allows you to realize transmission speeds of up to 100 Mbit/s. In addition, the radio systems are easy to install like a cable – Plug & Play. There are two different housing variants compact (IP 20) for cabinet mounting and X-treme (IP 65) for direct use in industrial environments or outdoors.
Wireless PROFINET in your application
What are your application’s special requirements? Simply check for yourself whether wireless radio technology is suitable for your project – with our free project guide with a quick check for your wireless project.
Comparison – DATAEAGLE 4000 – Industrial Wireless PROFINET
| Product | Frequency | Typical distance (m) | max. Radio Slaves | max PROFINET Devices | Profisafe | PROTECTION CLASS |
|---|---|---|---|---|---|---|
 DATAEAGLE Compact 4333 / 4343 | 869 MHz, 915 MHz | 3000 | 4 | 6 | No | IP20 |
 DATAEAGLE Compact 4712 / 4732 | 2,4 GHz | 300 | 4 | 6 | Yes | IP20 |
 DATAEAGLE Compact 4713 | 2,4 GHz | 300 | 4 | 6 | No | IP20 |
DATAEAGLE Compact 4715 | 2,4 GHz | 300 | 1 | 4 | No | IP20 |
 DATAEAGLE X-treme 4333 / 4343 | 869 MHz, 915 MHz | 3000 | 4 | 6 | No | IP65 |
 DATAEAGLE X-treme 4712 / 4732 | 2,4 GHz | 300 | 4 | 6 | Yes | IP65 |
DATAEAGLE X-treme 4713 | 2,4 GHz | 300 | 4 | 6 | No | IP65 |
DATAEAGLE X-treme 4715 | 2,4 GHz | 300 | 1 | 4 | No | IP65 |
