DATAEAGLE Condition Monitoring System Fieldbus

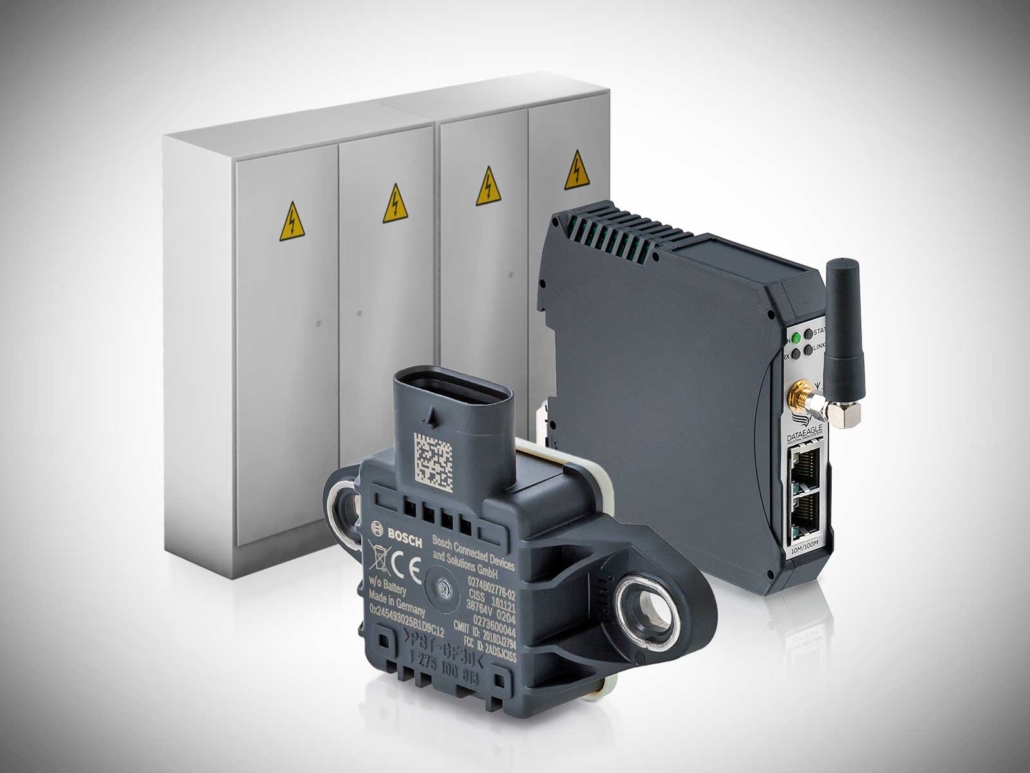

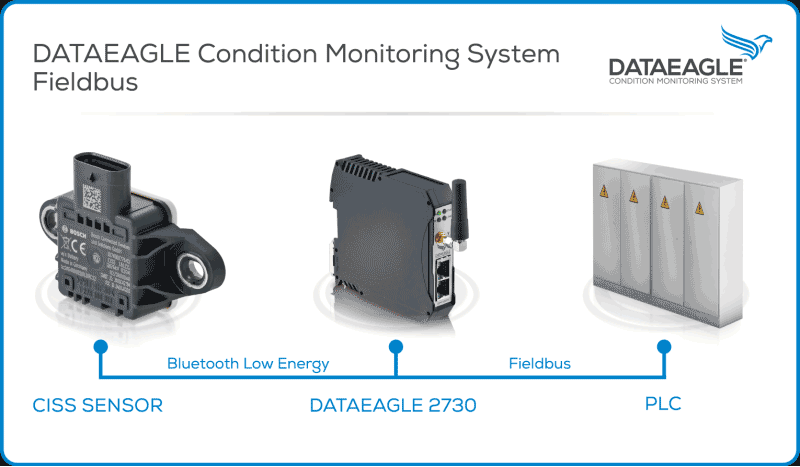

The system consists of a small multisensor for harsh industrial environments (CISS) and a worldwide usable IoT-Gateway (DATAEAGLE 2730) with integrated fieldbus interface for controllers of different manufacturers. The robust CISS sensor from Bosch can be mounted directly on the engine or machine and transmits the data via Bluetooth Low Energy to the central IoT Gateway DATAEAGLE 2730, where it can receive values from up to 8 CISS sensors simultaneously. The values are pre-processed and transmitted to the control system. From there the sensor values can be processed directly at the process.
Condition Monitoring System: Applications
The DATAEAGLE Condition Monitoring System Fieldbus can be used as original equipment as well as retrofit solution for existing plants. The following inertial and environmental sensors are used: acceleration, gyroscope, magnetometer, digital light, pressure, microphone, temperature and humidity. The values are transmitted from the sensor to the control unit in seconds.
Optionally, the values can also be viewed remotely via a cloud solution. For more information, see DATAEAGLE CMS Cloud.
• Overview Condition Monitoring Systems
• More information in this blog article
Video: Installation DATAEAGLE Condition Monitoring System
Webinar: Implementing IoT projects and condition monitoring quickly and easily
DATAEAGLE CMS FIeldbus – IoT ready-to-use.
Select plc interface
- Ready-to-use system for condition monitoring e.g. of motors, pumps and machines
- Industrial Gateway
- Fieldbus interface: Profibus, Profinet, CAN / CANopen, ETHERNET/IP, EtherCAT, Modbus TCP, POWERLINK, sercos, VARAN
- Ready-to-use project for the plc
Get your offer or order directly
Today
Condition Monitoring complete system: 1.590€
PROFINET order online │ PROFIBUS order online │ EtherCAT order online │ Ethernet/IP order online │ Modbus TCP order online │ POWERLINK order online │ CAN / CANopen order online│ VARAN upon request│ sercos upon request
The overall system contains: CISS sensor with power supply, IoT Gateway DATAEAGLE 2730, as well as antennas and cables. Prices: last update 05/2020 (non-binding offer, valid for Europe, net plus VAT, excl. shipping, subject to change)
