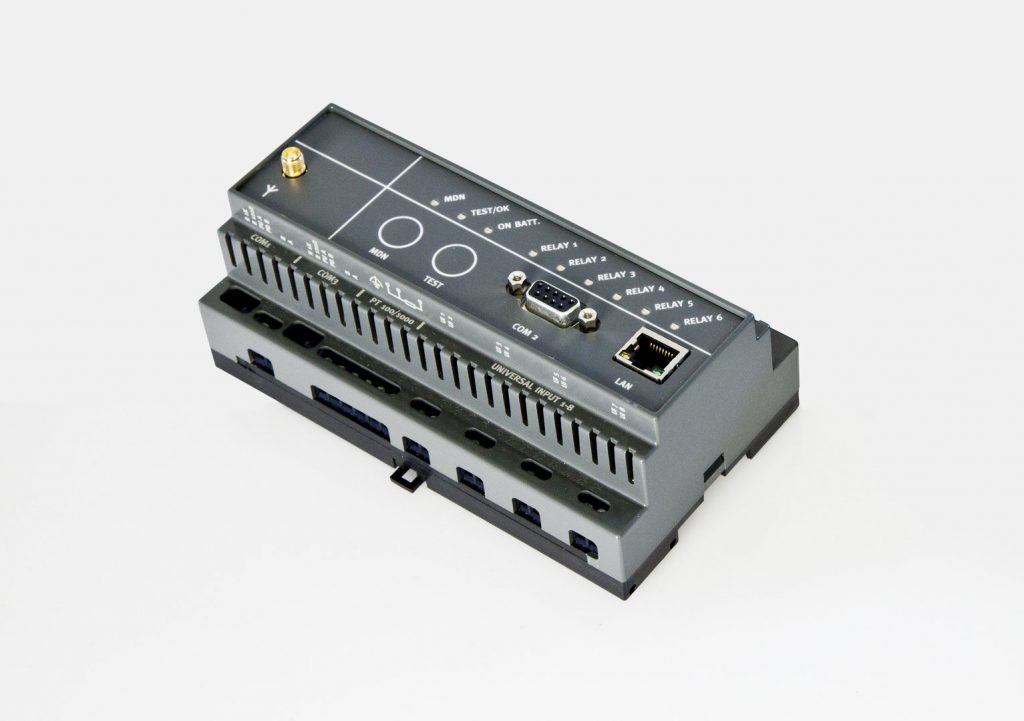

DATAEAGLE 7010

Sensor signals can now be reliably transmitted to the cloud by radio using DATAEAGLE 7000 series. DATAEAGLE 7010 measures and controls sensors. Analog and digital sensors can be connected to the univerals inputs. Adding to the versatility of the DATAEAGLE 7010 series cloud we offer numerous options like RS232 or RS 485 interface as well as mA- and relais-outputs for remote control.

The gateway itself is designed for quick commissioning:
It can be programmed remotely through an online portal (Device Cloud), that has predefined parameter settings to transmit sensor values. The DATAEAGLE 7010er series contains an integrated battery which allows operating in case of the loss of AC power.

DATAEAGLE 7010 product features:

• 8 universal input ports (4-20 mA or 0-10 V or digital)
• 2 serial ports RS485 and RS 232 for a digital sensor
• 1 temperature sensor inout for PT100/1000
• 2 analog output port and
• 6 Relais output
• Integrated eSIM-card with worldwide roaming functionality

You can connect an intelligent display via the RS 232 interface of the DATAEAGLE 7010 and 7011. The DATAEAGLE 7010 Extension adds cost-efficiently more univerals ports to the DATAEAGLE 7010. YOu can connect up to three extension modules.

The DATAEAGLE 7012 has only 3 analog and digital ports and is a perfect Starter set. The DATAEAGLE 7011 has 3 universal ports and 2 serial ports. The gateway DATAEAGLE 7020 is battery-powered and designed for outdoor applications.
