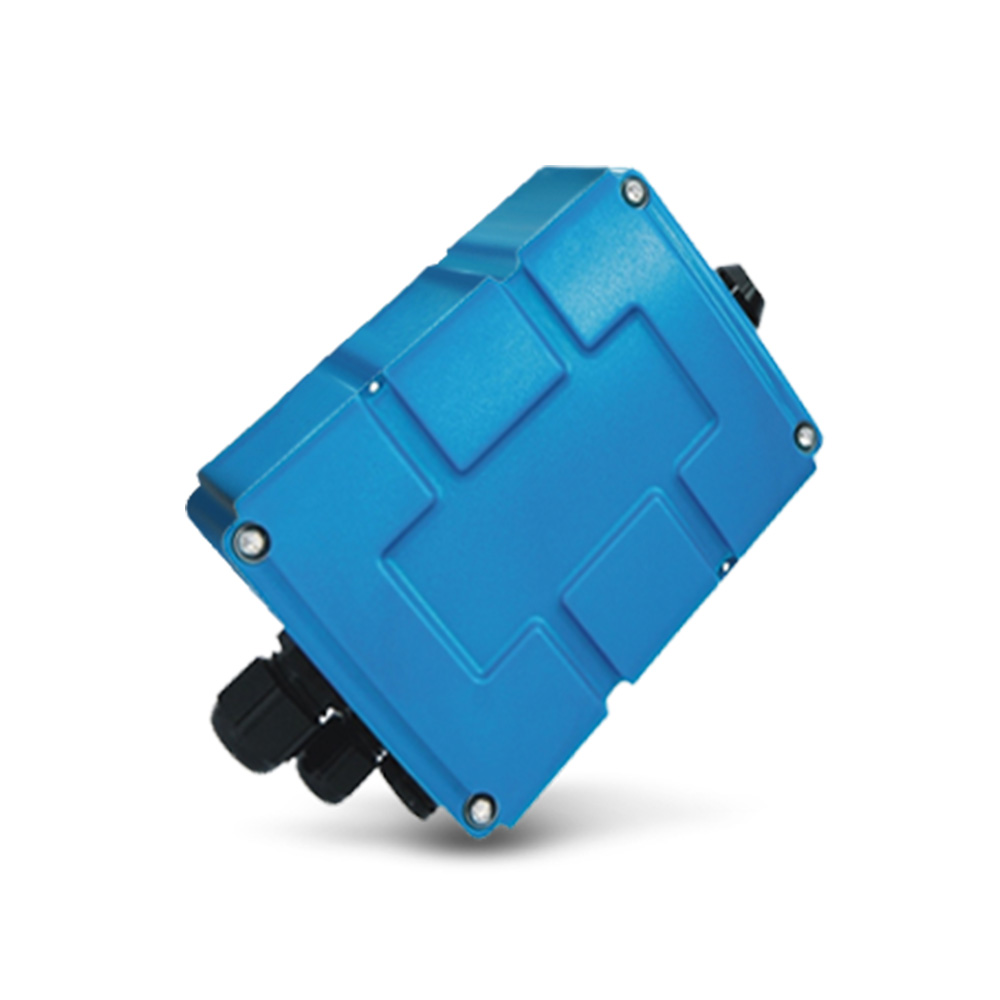

DATAEAGLE 7020
The DATAEAGLE 7020 is a compact gateway to log, process and transmitt signals from sensors. The sensors can be connected to 4 universal input ports. The sensors can be powered by the DATAEAGLE. It also has 1 floating switch contact to control an actuator. It can also be used to activate the measurement of the sensor.
The DATAEAGLE 7020 is powered by a battery. The charger is integrated which makes it suitable for the usage with a solar Panel. The parametrization is done via DATAEAGLE Potral, a device cloud. The gateway can be used worldwide at flat rate costs due to the integrated eSIM card.
DATAEAGLE 7020 features:
- 4 universal ports (4-20 mA or 0-10 V or digital or 1 Temperature sensor PT100/1000)
- 1 floating switch contact
- 3,3V power supply for 1 sensor
- 1 switchable power supply for sensor (15V at Iout 45mA or23,3V at Iout 45mA)
- IP67
The product series DATEAGLE 7010 is in IP 20 and has no battery. The DATAEAGLE 7050 contains various fieldbus interfaces to implement Remote Machinery Monitoring.
Application examples & scenarios
- Alarm indication
- Sensor & actuator monitoring
- Water level measurement
- Condition Monitoring of pumps
- Temperature monitoring
- Predictive maintenance
- Data Logging
