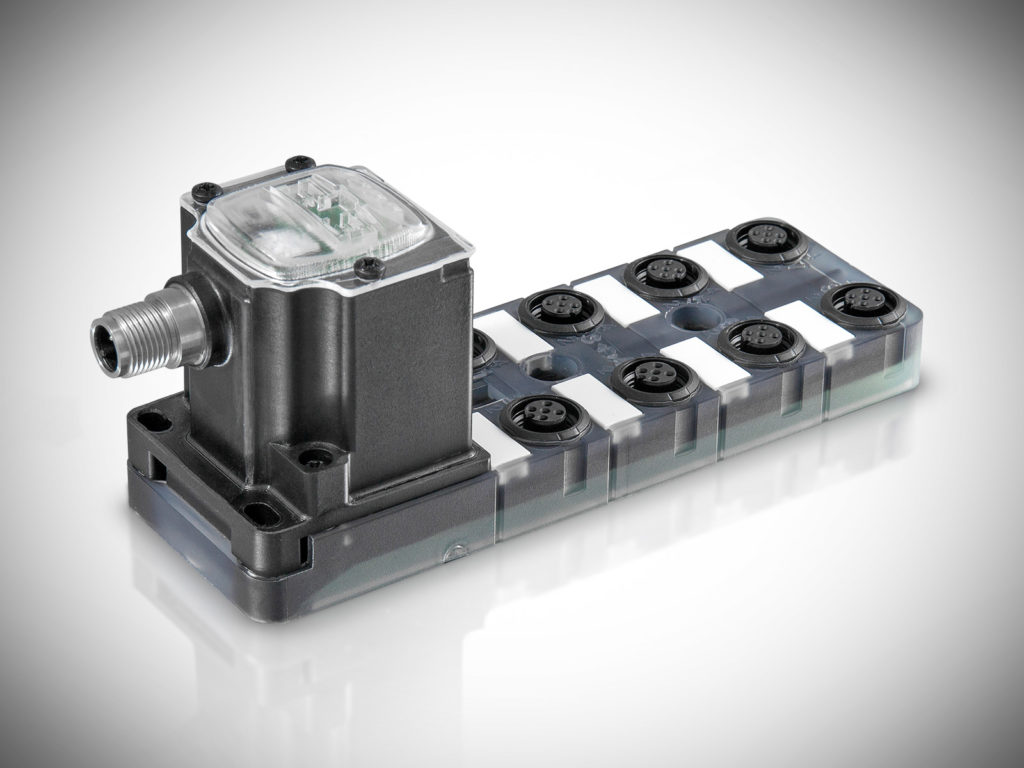

DATAEAGLE X-treme IO 2730
These devices are housed in an IP67 enclosure and are used for wireless transmission of IO signals. When used in pairs, they result in a solution for wireless IO-IO communication and form a plug-and-play solution. They can be used with the DATAEAGLE Compact 2730 to enable wireless transmission of IO signals to PLC, local server, or cloud server.
The device has 2 variants depending on the number of IO signals that can be connected to it. For applications with few IO inputs/outputs, the variant with a maximum of 4 IO sockets can be used and for applications with several IO inputs/outputs, the variant with a maximum of 8 IO sockets can be used.
The possible sets of the DATAEAGLE X-treme IO 2730, when used in pairs, are listed below:
- 8DI ↔ 8DO
- 4DI ↔ 4DO
- 4DI 4DO ↔ 4DI 4DO
- 4AI 4AO ↔ 4AO 4AI 4-20mA
- 4AI 4AO ↔ 4AO 4AI 0-10V
Technical data – DATAEAGLE X-treme IO 2730
Weight | 0,28 kg |
---|---|
Interface | IO – Fieldbus, IO – IO |
Protocol | |
Voltage supply | |
Connection voltage supply | M12 (Stecker) 5-polig, A-codiert, kurzschluss- und überlastfest |
Power consumption | |
Mounting | Schraubbefestigung |
Conformity | |
IP rating | |
Temperature range | |
Frequency | |
Typical Distance (m) | |
IO Schnittstelle | 8 x M12 (Buchse) 5-polig, A-codiert, 4 x M12 (Buchse) 5-polig, A-codiert |
