Directional Antenna Art. No.: 11111 for 2,4 GHz

We have put together the most important facts about antenna technology and those accessories tested by us in the ‘Antenna 101’ guide.

Directional Antenna 2,4 GHz Art. No.: 11111

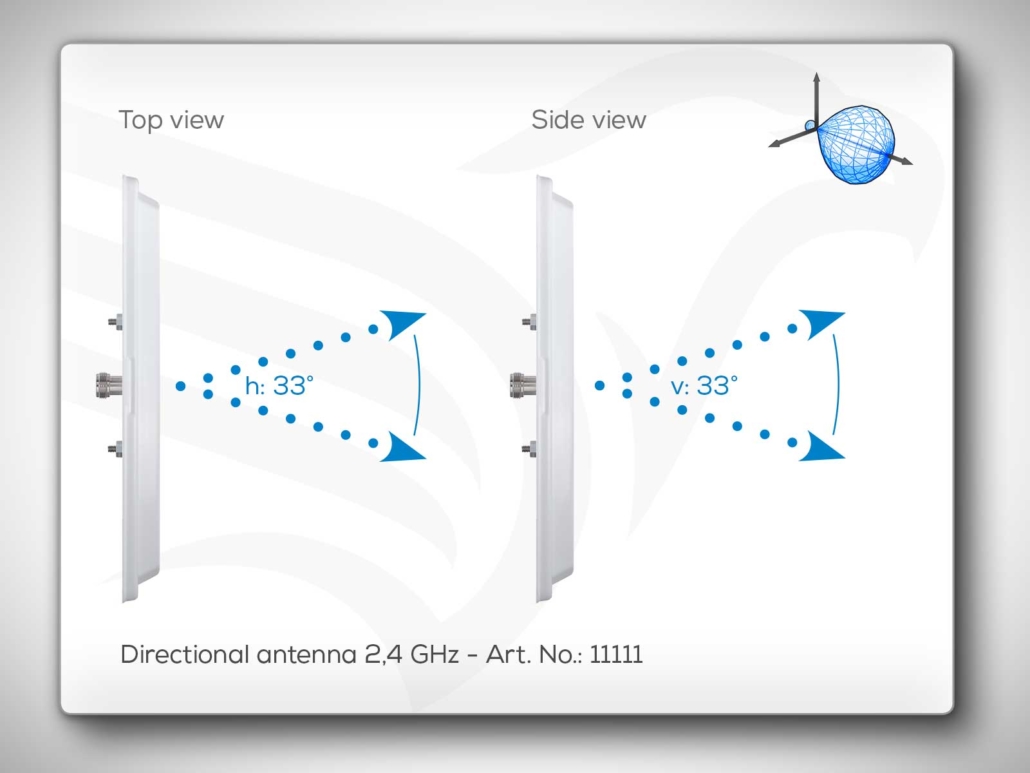

Opening angle	h: 33°, v: 33°
Polarisation	RHCP
Antenna gain	14 dB
IP rating	IP67
Port	N-female
Mounting	Mast mount
Suitable antenna cable	10528 (N-male 4m), 10535 (N-male 10m), 10567 (N-male 1m), 10667 (N-male 2m), 11112 (N-male 6m)
Optional mounting material	–
Dimensions in mm	203,20 × 203,20 × 40,64
Scope of delivery	Antenna, mounting material for mast assembly
Antenna frequency	2400 – 2500 MHz

Higher antenna gain means longer reach but with a comparatively narrower opening angle and the narrower the opening angle, the greater the range.

Directional Antenna

A directional antenna focuses its radiation density in a specific direction. Due to its directivity, interfering transmitters placed outside of primary or secondary lobes are muted, and the antenna increases its reach in beam direction.
