Omnidirectional antennas for cellular radio (also suited for 869 MHz)
An omnidirectional antenna has an even radiation pattern horizontally in all directions. That means it has a horizontal opening angle of 360°. Therefore it is often used for rotating or mobile applications. We have put together the most important facts about antenna technology and those accessories tested by us in the ‘Antenna 101’ guide.

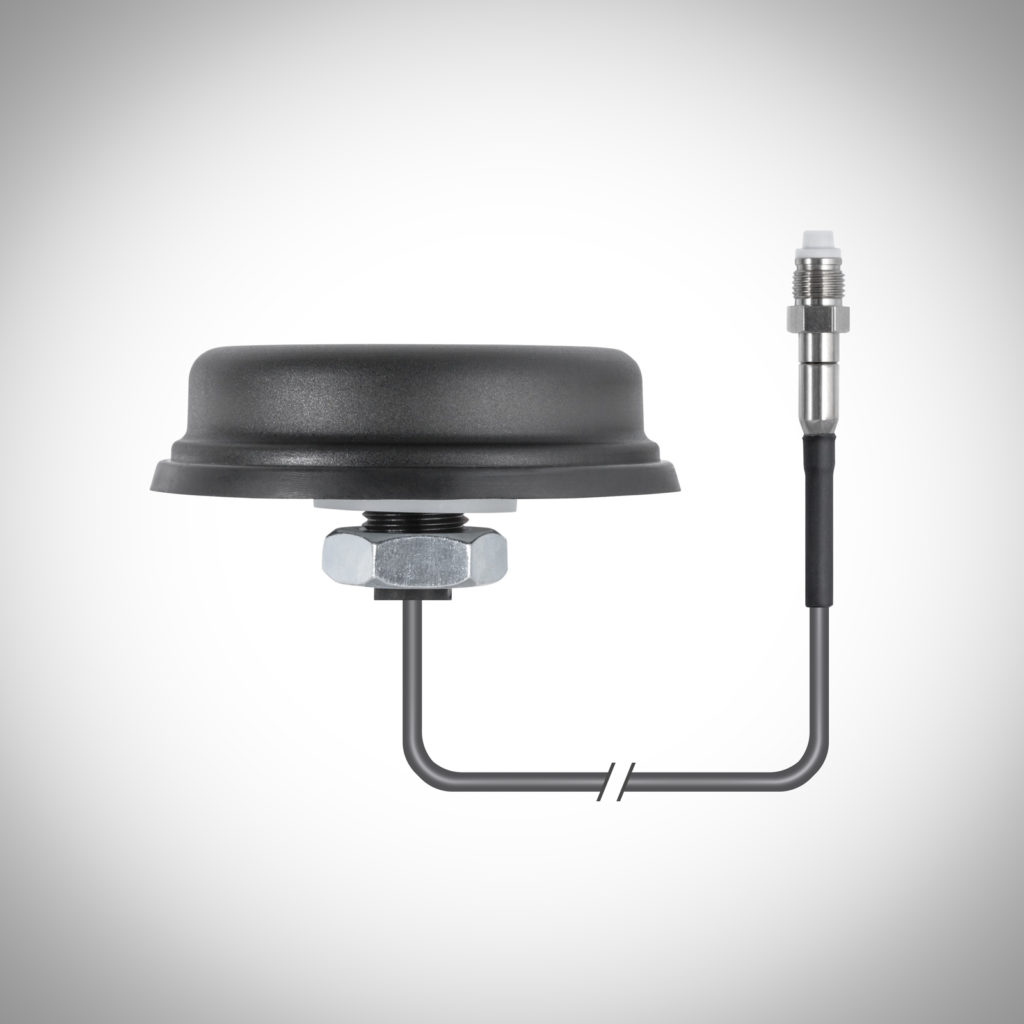

Omnidirectional antenna item no. 10549
| Opening angle: | h: 360° v: 55° – 75° |
| Polarization: | Vertical |
| Antenna gain: | 2 dBi typ. (900 MHz) / -1 dBi typ. (1800 MHz) |
| Protection class (IP): | IP69K |
| Port: | 3m cable RG174 with GSM/UMTS – FME (m) |
| Assembly: | Roof and control cabinet |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 76, diameter: 21 |
| Scope of delivery: | Antenna, 3m antenna cable FME-male |
| Frequency | GSM 900 / 1800 MHz |
Omnidirectional antenna item no. 10549-SMA
| Opening angle: | h: 360° v: 55° – 75° |
| Polarization: | Vertical |
| Antenna gain: | 0 dBi bis +5 dBi |
| Protection class (IP): | IP69K |
| Port: | 3m cable RG174 with GSM/UMTS – SMA (m) |
| Assembly: | Roof and control cabinet |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 76, diameter: 21 |
| Scope of delivery: | Antenna, 3m antenna cable SMA-male |
| Frequency: | GSM 850 – 2100 MHz UMTS/LTE Band |
Omnidirectional antenna item no. 11124
| Opening angle: | h: 360° v: 80° |
| Polarization: | Vertical |
| Antenna gain: | 0dB |
| Protection class (IP): | indoor |
| Port: | SMA-male |
| Assembly: | 0° directly at DATAEAGLE compact |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 50 |
| Scope of delivery: | Antenna |
| Frequency: | 750-960 MHz 1700-2150 MHz 2370-2650 MHz |
Omnidirectional antenna item no. 11124_W90
| Opening angle: | h: 360° v: 80° |
| Polarization: | Vertical |
| Antenna gain: | 0dB |
| Protection class (IP): | indoor |
| Port: | SMA-male |
| Assembly: | 90° directly at DATAEAGLE compact |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 50 |
| Scope of delivery: | Antenna, angle piece 90° |
| Frequency: | 750-960 MHz 1700-2150 MHz 2370-2650 MHz |
Omnidirectional antenna item no. 11124_MD
| Opening angle: | h: 360° v: 80° |
| Polarization: | Vertical |
| Antenna gain: | 0dB |
| Protection class (IP): | indoor |
| Port: | SMA-male |
| Assembly: | 10959 or assembly on control cabinet |
| Suitable antenna cable: | 10589, 10629, 10279, 10273, 10935, 10284 |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 60 |
| Scope of delivery: | Antenna with feedthrough |
| Frequency: | 750-960 MHz, 1700-2150 MHz 2370-2650 MHz |
Omnidirectional antennas for cellular radio (also suited for 869 MHz)

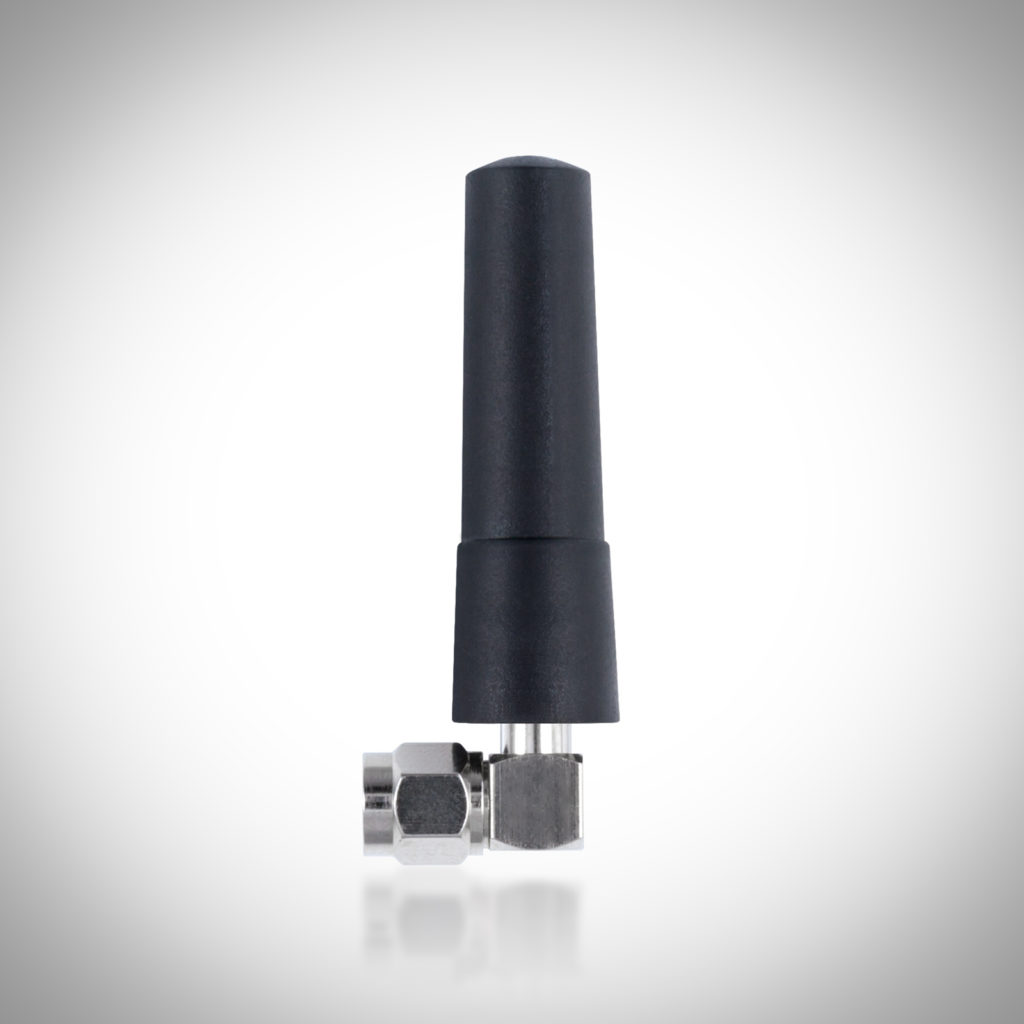

Omnidirectional antenna item no. 11085
| Opening angle: | h: 360° v: 80° |
| Polarization: | vertical |
| Antenna gain: | 0dB |
| Protection class (IP): | IP20 |
| Port: | SMA-male |
| Assembly: | 90° directly at DATAEAGLE compact |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 43 |
| Scope of delivery: | Antenna, angle piece 90° |
| Frequency: | 824 – 960 MHz, 1710 – 1990 MHz |

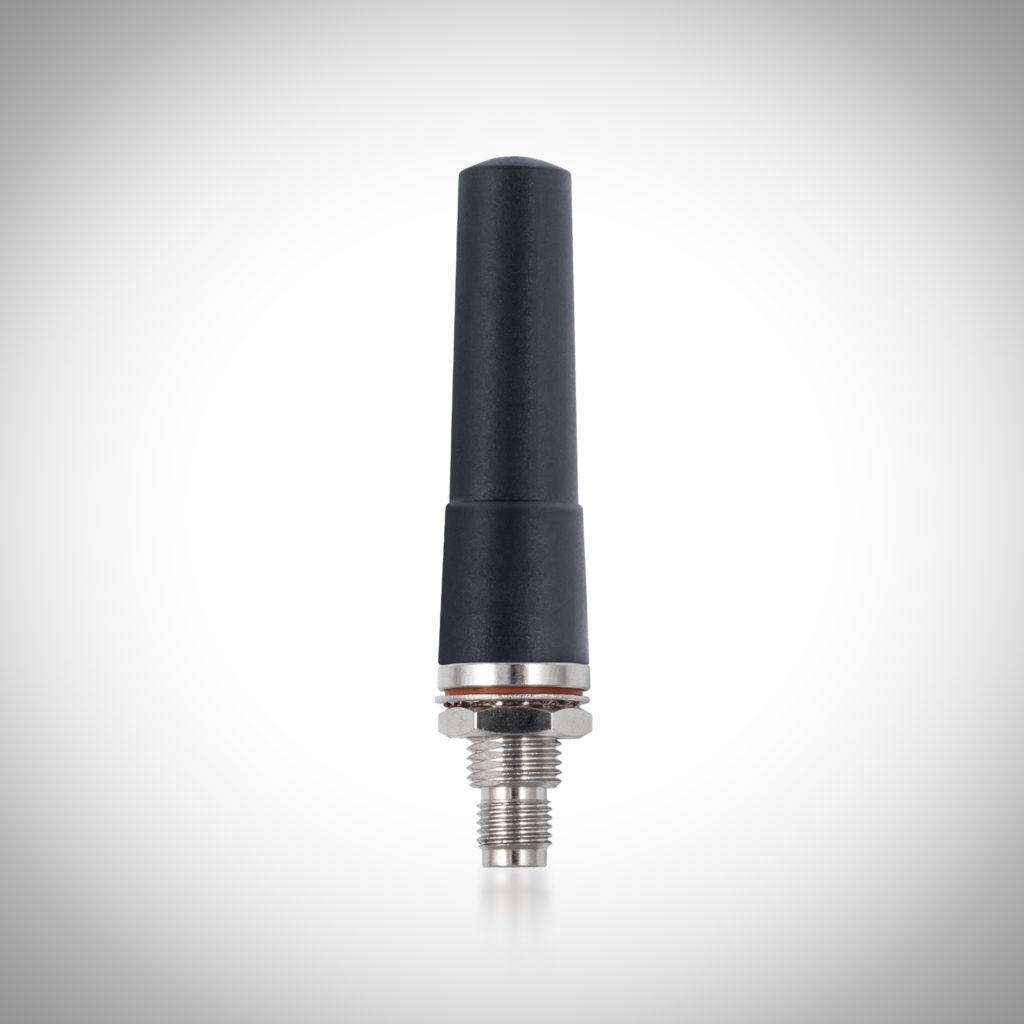

Omnidirectional antenna item no. 11085_MD
| Opening angle: | h: 360° v: 80° |
| Polarization: | vertical |
| Antenna gain: | 0dB |
| Protection class (IP): | IP20 |
| Port: | SMA-male |
| Assembly: | 10959 or assembly on control cabinet |
| Suitable antenna cable: | 10589, 10629, 10279, 10273, 10935, 10284 |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 43 |
| Scope of delivery: | Antenna with feedthrough |
| Frequency: | 824 – 960 MHz, 1710 – 1990 MHz |
