DATAEAGLE 6000 – Industrial Wireless CAN
Our product line DATAEAGLE 6000 was developed especially for Wireless CAN and CANopen. With its patented filter technology, the DATAEAGLE 6000 series provides an optimal, reliable radio connection and is designed for many industries. See for yourself!

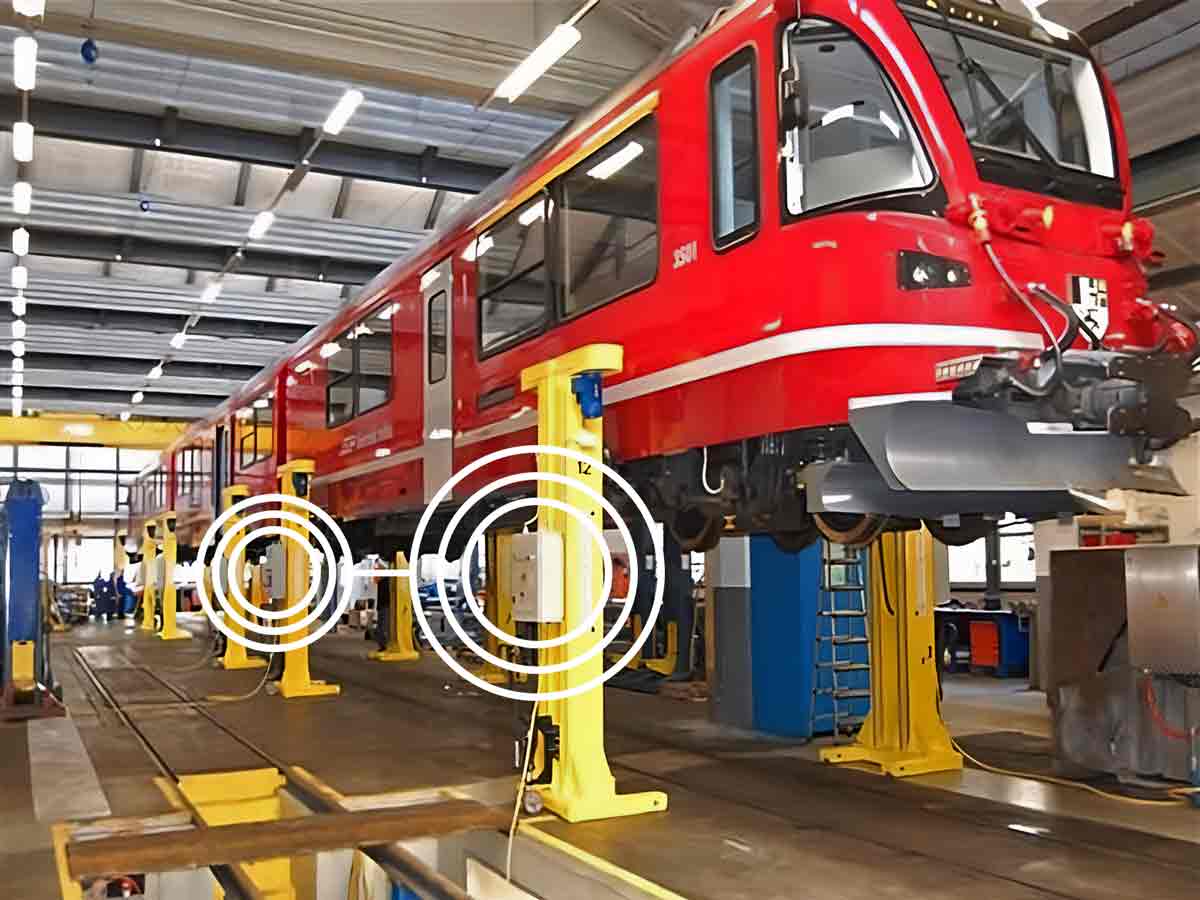

Wireless CAN in practice
In automation sensor and application data from machines are transmitted from the field level to a central control unit. Moving parts, e.g. in windmills or mobile machinery, require wireless communication solutions for the different protocols (fieldbus). Therefore, radio links are used. The DATAEAGLE 6000 modules “speak CAN and CANopen“ and provide data communication in wireless network areas with highest reliability. Our software DATAEAGLE Wizard allows a quick installation, as well as a fast set-up of a whitelist.
Wireless CAN – Product features

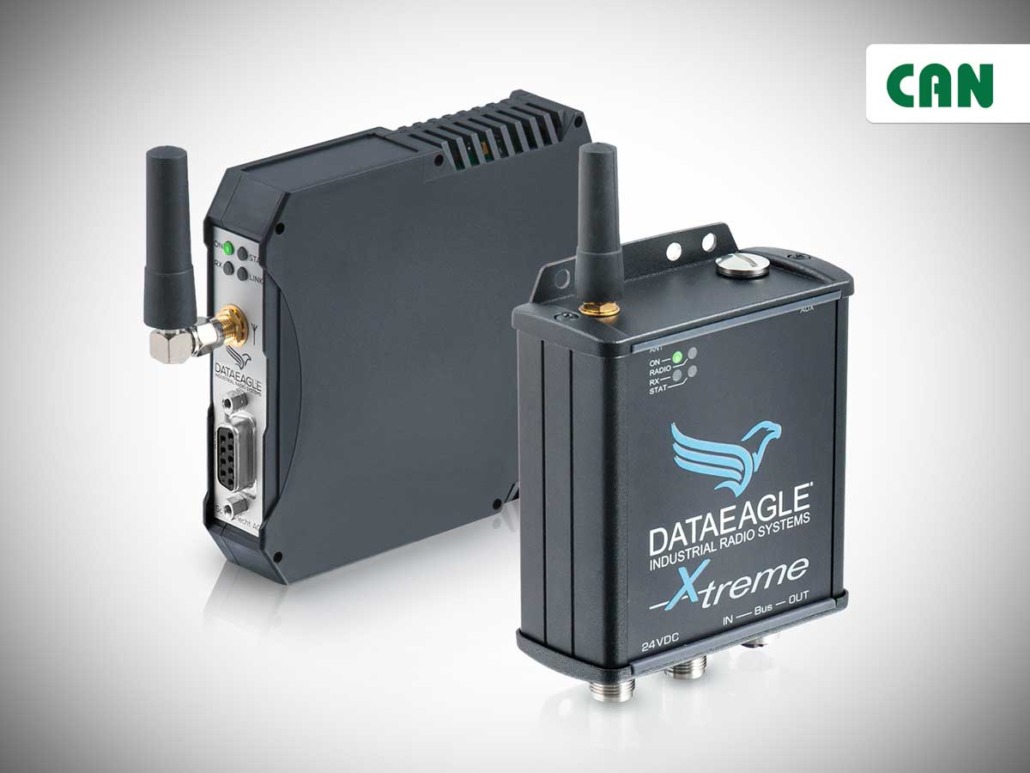

Various radio technologies are used for transmission, mostly Bluetooth 2.4 GHz or 869 / 915 MHz in the licensed band and allow a bus speed of up to 500 kbit/s. In addition, the radio systems are easy to install. There are two different housing variants compact (IP 20) for cabinet mounting and X-treme (IP 65) for direct use in industrial environments or outdoors.
White Paper – Radio Data Transmission explained
Read in the following whitepaper which patent-registered technologies are needed for a failure-free process and why you could replace your cable with a radio link safely in your applications. Download Whitepaper:
Comparison – DATAEAGLE 6000 – Industrial Wireless CAN
| Product | Frequency | Typical distance (m) | max. Radio Slaves | PROTECTION CLASS |
|---|---|---|---|---|
 DATAEAGLE Compact 6330 / 6340 | 869 MHz, 915 MHz | 3000 | 4 | IP20 |
 DATAEAGLE Compact 6730 | 2,4 GHz | 300 | 4 | IP20 |
 DATAEAGLE X-treme 6330 / 6340 | 869 MHz, 915 MHz | 3000 | 4 | IP65 |
DATAEAGLE X-treme 6730 | 2,4 GHz | 300 | 4 | IP65 |
