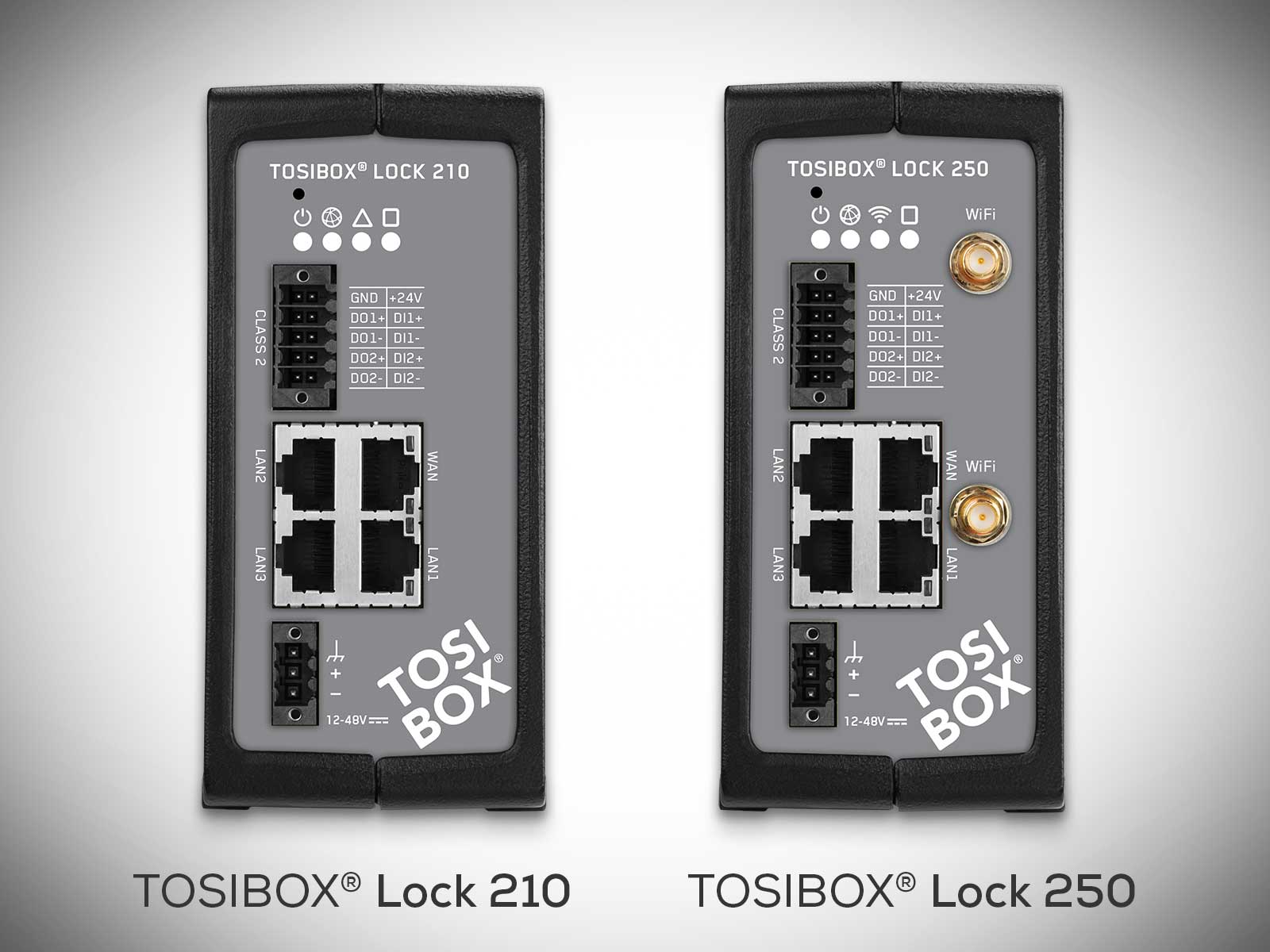

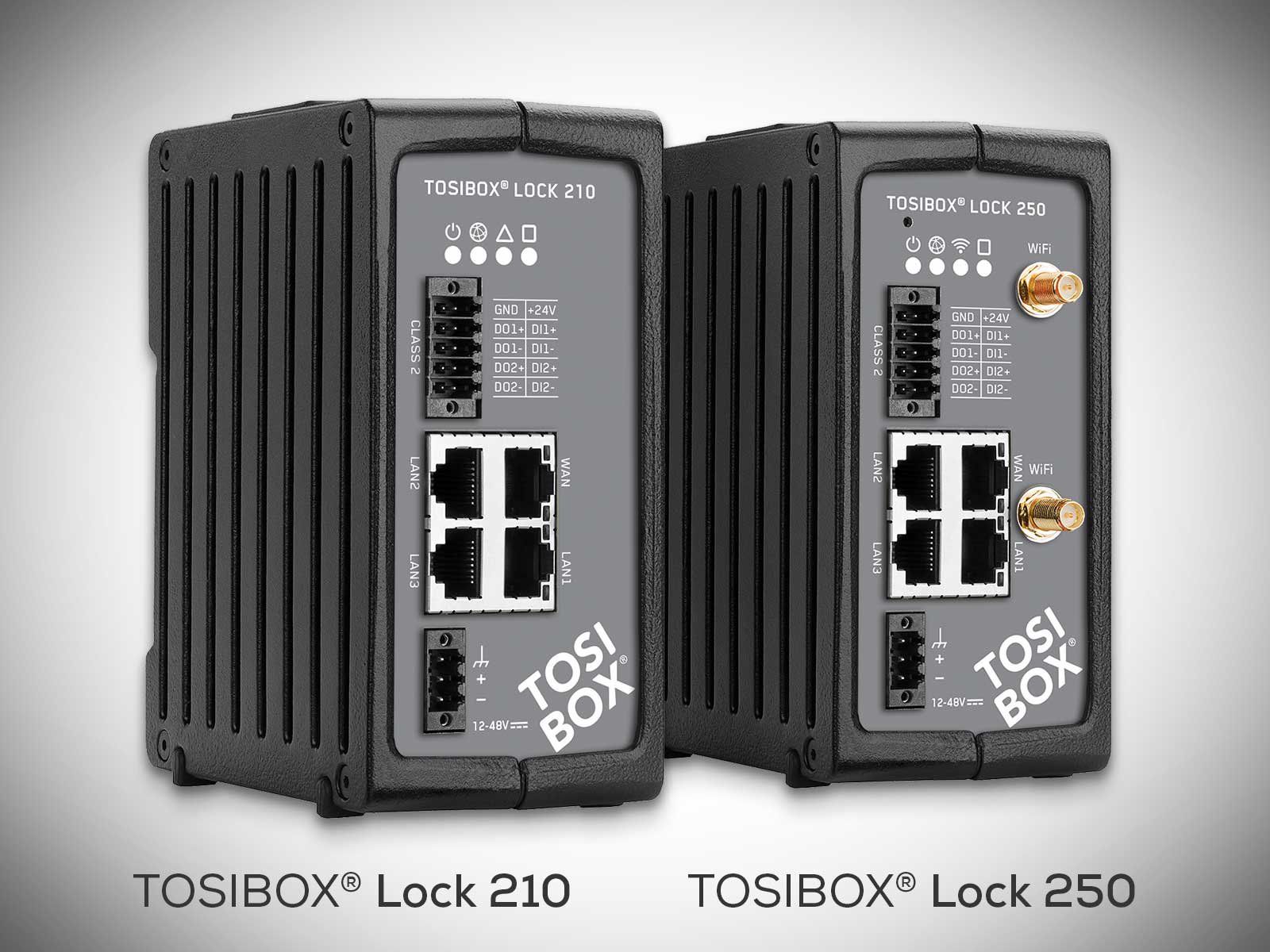

TOSIBOX® Lock 210 and 250
TOSIBOX® Lock 210 is an intelligent remote connection and network device that provides a secure endpoint to endpoint remote connection. The devices and equipment connected to the TOSIBOX® Lock can be accessed securely over the Internet and over LAN and WAN networks using an encrypted VPN connection. Across NATs and firewalls, the patented Plug & Go™ remote connection connects, taking less than 5 minutes from the time the TOSIBOX® devices are unpacked to the point of use. In addition, commissioning can be carried out without software installation, changes to the network configuration or IT expertise.
TOSIBOX® Lock 210 is specifically designed for industrial environments and its robust housing offers, for example, better installation options on DIN rails. In addition, the Lock 210 brings improved throughput VPN (up to 30 Mb/s), a new optimised web user interface and PoE functionality. The Lock 210 is fully compatible with all existing TOSIBOX® products.
New TOSIBOX® Lock 250 is an efficient and robust industrial router similar to TOSIBOX® Lock 210 with an integrated WiFi. It is serves as an endpoint for secure remote connections in operational (OT) networks. Devices connected to the Lock are securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.
TOSIBOX® Lock 210 Features
Ports
- 1 x USB 2.0, type A
- 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- LAN3 can be assigned as Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- Ethernet port isolation: 1500 Vrms 1 minute (when connected to protective ground)
Connections
- 12-48V DC (+/-20%), reverse polarity protected
- Device frame connector
- 2 x Digital Input, 2 x Digital Output, 24V DC out
- DIN rail attachment (back)
- Maximum power consumption 10W
I/O specifications
- 2 x digital inputs, galvanic isolation, current limited to <5mA, Voltage 0 – 32V nom. >12V is interpreted as ‘1’, 0-5V is ‘0’
- 2 x digital outputs, 24V DC, 50 mA current shared by the outputs and 24V DC out
- 1 x 24V DC out, 50 mA current shared by 24V DC out, output 1 and output 2
- Software configurable I/O state
For more information about WAN, mobile radio and accessories as well as the dimensions, please refer to the data sheet.
TOSIBOX® Lock 250 Features
-
Integrated WiFi as connectivity method or access point for wireless devices on site
Ports
- 1 x USB 2.0, type A
- 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- LAN3 can be assigned as Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- Ethernet port isolation: 1500 Vrms 1 minute (when connected to protective ground)
Connections
- 12-48V DC (+/-20%), reverse polarity protected
- Device frame connector
- 2 x WiFi antenna connector, RP-SMA Female
- 2 x Digital Input, 2 x Digital Output, 24V DC out
- DIN rail attachment (back)
- Maximum power consumption 10W
I/O specifications
- 2 x digital inputs, galvanic isolation, current limited to <5mA, Voltage 0 – 32V nom. >12V is interpreted as ‘1’, 0-5V is ‘0’
- 2 x digital outputs, 24V DC, 50 mA current shared by the outputs and 24V DC out
- 1 x 24V DC out, 50 mA current shared by 24V DC out, output 1 and output 2
WLAN
- IEEE 802.11 b/g/n, max. 150 Mbps
- WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed, WPA-EAP, WPA2-EAP
- TKIP/AES encryption
- Frequency 2.412 – 2.462 GHz, 11 channels
- Output power 20 dBm max
