Directional antenna item no. 11051
| Opening angle: | h: 70° v: 65° |
| Polarization: | Vertical |
| Antenna gain: | 8 dBi |
| Protection class (IP): | IP67 |
| Port: | N-female |
| Assembly: | Wall mount |
| Suitable antenna cable: | 10567, 10667, 10528, 11112, 10535 |
| Optional mounting material: | 10519, 10882 |
| Dimensions in mm: | 190 × 190 × 30 |
| Scope of delivery: | Antenna, mounting |
| Frequency: | 860 – 870 MHz |

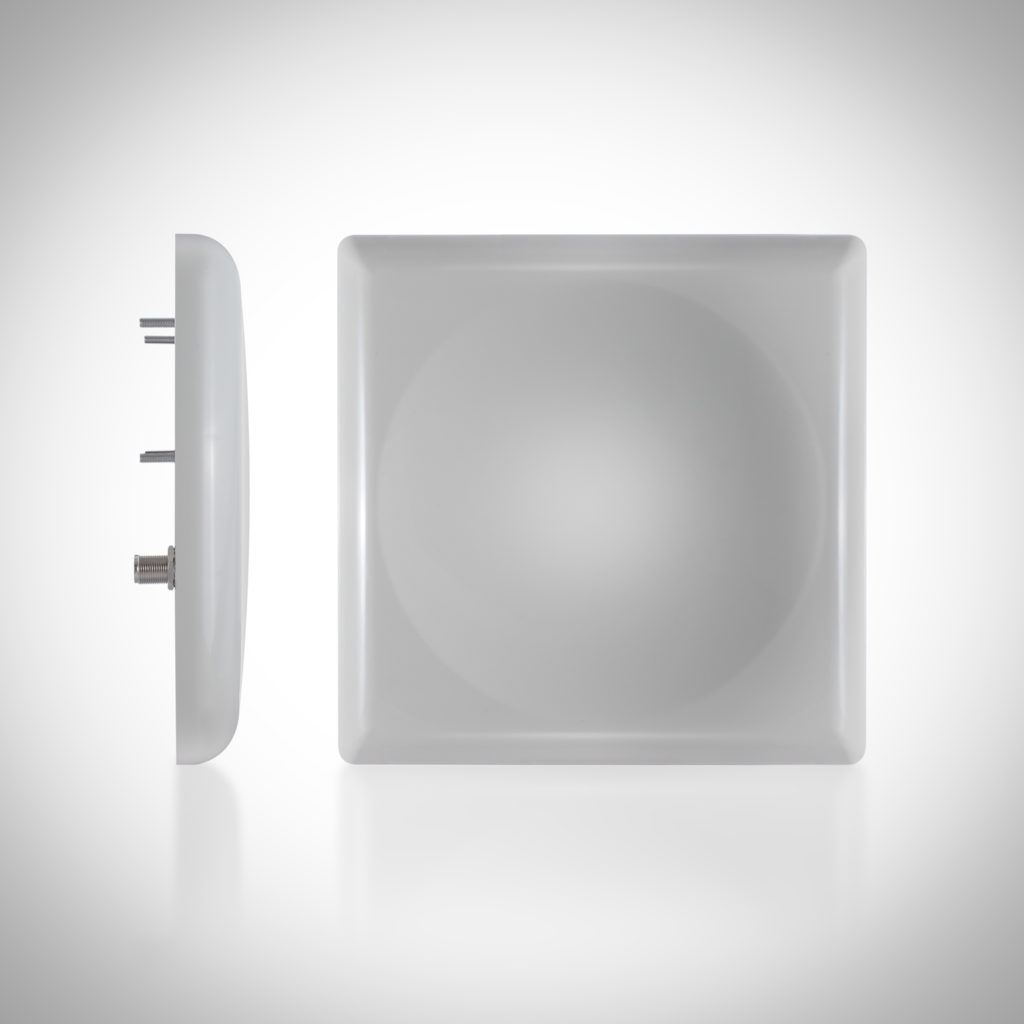

Directional antenna item no. 11051_OH
| Opening angle: | h: 70° v: 65° |
| Polarization: | Vertical |
| Antenna gain: | 8 dBi |
| Protection class (IP): | IP67 |
| Port: | N-female |
| Assembly: | Wall mount |
| Suitable antenna cable: | 10567, 10667, 10528, 11112, 10535 |
| Optional mounting material: | |
| Dimensions in mm: | 190 × 190 × 30 |
| Scope of delivery: | Antenna |
| Frequency: | 860 – 870 MHz |
Directional antenna item no. 11003
| Opening angle: | h: 135° v: 90° |
| Polarization: | RHCP (circular, right) |
| Antenna gain: | 3,5 dBi |
| Protection class (IP): | IP67 |
| Port: | SMA-female |
| Assembly: | Wall mount |
| Suitable antenna cable: | 10589, 10629, 10279, 10273, 10935, 10284 |
| Optional mounting material: | 10519, 10882 |
| Dimensions in mm: | 101 × 80 × 35 |
| Scope of delivery: | Antenna, mounting material for wall assembly |
| Frequency: | 865 – 870 MHz |
