A directional antenna focuses its radiation density in a specific direction. Due to its directivity, interfering transmitters placed outside of primary or secondary lobes are muted, and the antenna increases its reach in beam direction. Consequently the antenna radiates in one direction only. We have put together the most important facts about antenna technology and those accessories tested by us in the ‘Antenna 101’ guide.

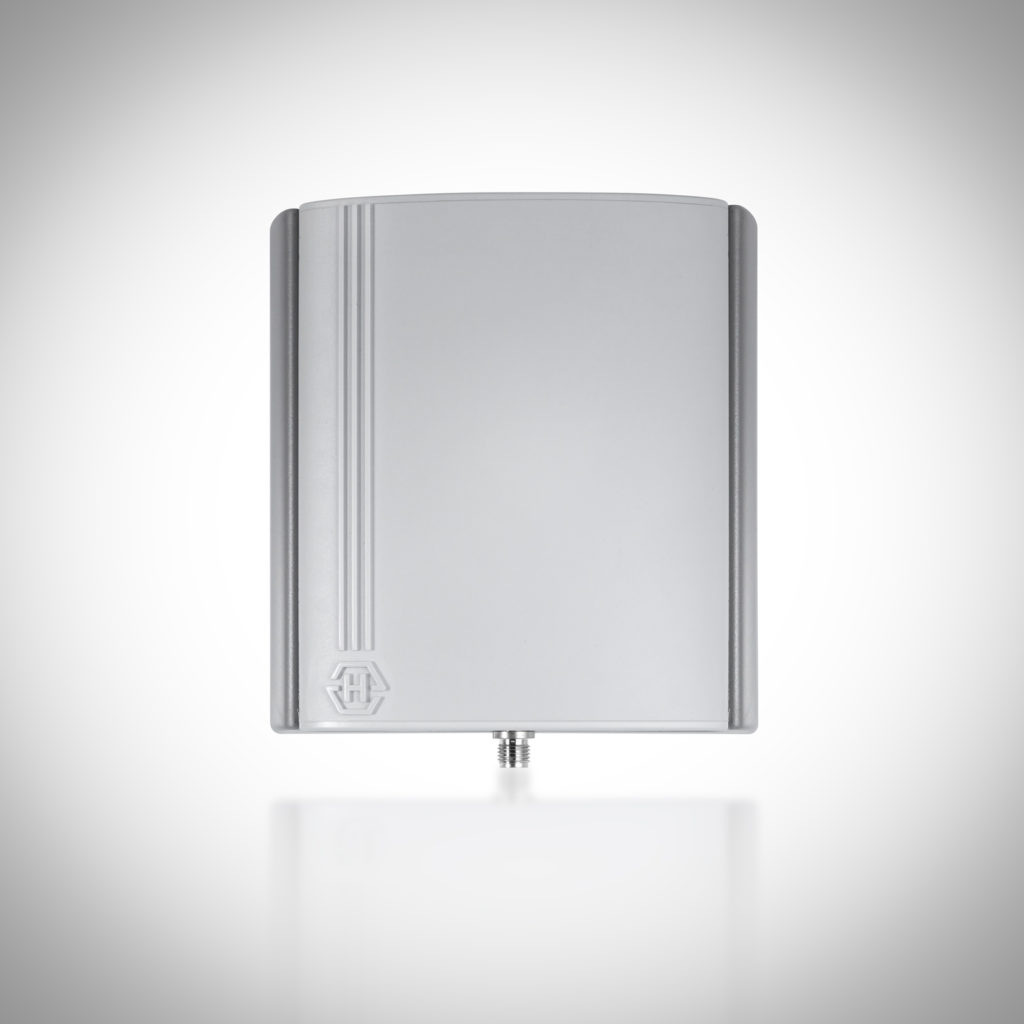

Directional antenna item no. 10774
| Opening angle: | h:70° v: 65° |
| Polarization: | RHCP |
| Antenna gain: | 8,5 dBi |
| Protection class (IP): | IP20 |
| Port: | SMA-female |
| Assembly: | Wall mount |
| Suitable antenna cable: | 10589, 10629, 10279, 10273, 10935, 10284 |
| Optional mounting material: | 10519, 10882 |
| Dimensions in mm: | 101 x 95 x 32 |
| Scope of delivery: | Antenna, mounting material for wall assembly |
| Frequency: | 2300 – 2500 MHz |

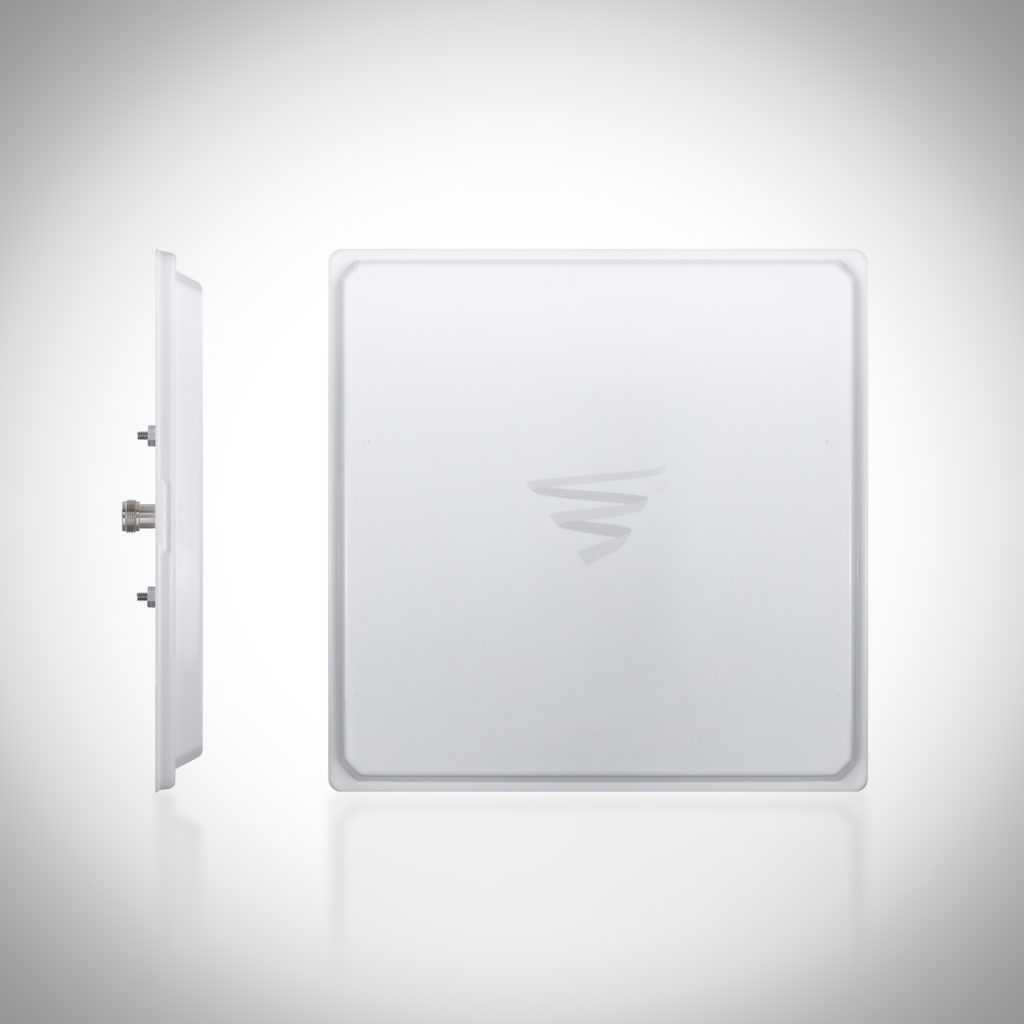

Directional antenna item no. 11111
| Opening angle: | h: 33° v: 33° |
| Polarization: | RHCP |
| Antenna gain: | 14 dB |
| Protection class (IP): | IP67 |
| Port: | N-female |
| Assembly: | Mast mount |
| Suitable antenna cable: | 10567, 10667, 10528, 11112, 10535 |
| Optional mounting material: | – |
| Dimensions in mm: | 203,20 × 203,20 × 40,64 |
| Scope of delivery: | Antenna, mounting material for mast assembly |
| Frequency: | 2400 – 2500 MHz |
