An omnidirectional antenna has an even radiation pattern horizontally in all directions. That means it has a horizontal opening angle of 360°. Therefore, it is often used for rotating or mobile applications. We have put together the most important facts about antenna technology and those accessories tested by us in the ‘Antenna 101’ guide.

Our omnidirectional antennas for 2,4 GHz

An omnidirectional antenna has an even radiation pattern horizontally in all directions. That means it has a horizontal opening angle of 360°. Therefore it is often used in rotating or mobile applications. Tilt refers to the shifting of the vertical opening angle of an omnidirectional antenna in a specific direction, related to the horizontal level.

Omnidirectional antenna item no. 10248

Omnidirectional Antenna Art. No.: 10248 for 2,4 GHz

Opening angle:	h: 360° v: 60°
Polarization:	Vertical
Antenna gain:	2,5 dB / approx. 5 dB compared to ¼ wave
Protection class (IP):	IP20
Port:	SMA-male
Assembly:	90° direct assembly to DATAEAGLE compact
Suitable antenna cable:	–
Optional mounting material:	–
Dimensions in mm:	Length: 110
Scope of delivery:	Antenna, SMA-male 90° angle
Frequency:	2310 – 2485 MHz

Omnidirectional antenna item no. 10926

Omnidirectional Antenna Art. No.: 10926 for 2,4 GHz

Opening angle:	h: 360° v: 60°
Polarization:	Vertical
Antenna gain:	2,5 dB
Protection class (IP):	IP20
Port:	SMA-female
Assembly:	Article No. 10959 or assembly in control cabinet
Suitable antenna cable:	10589, 10629, 10279, 10273, 10935, 10284
Optional mounting material:	10959 (antenna base for wall mount)
Dimensions in mm:	Length: 110
Scope of delivery:	Antenna rod, antenna base, O-ring, washer, nut
Frequency:	2310 – 2485 MHz

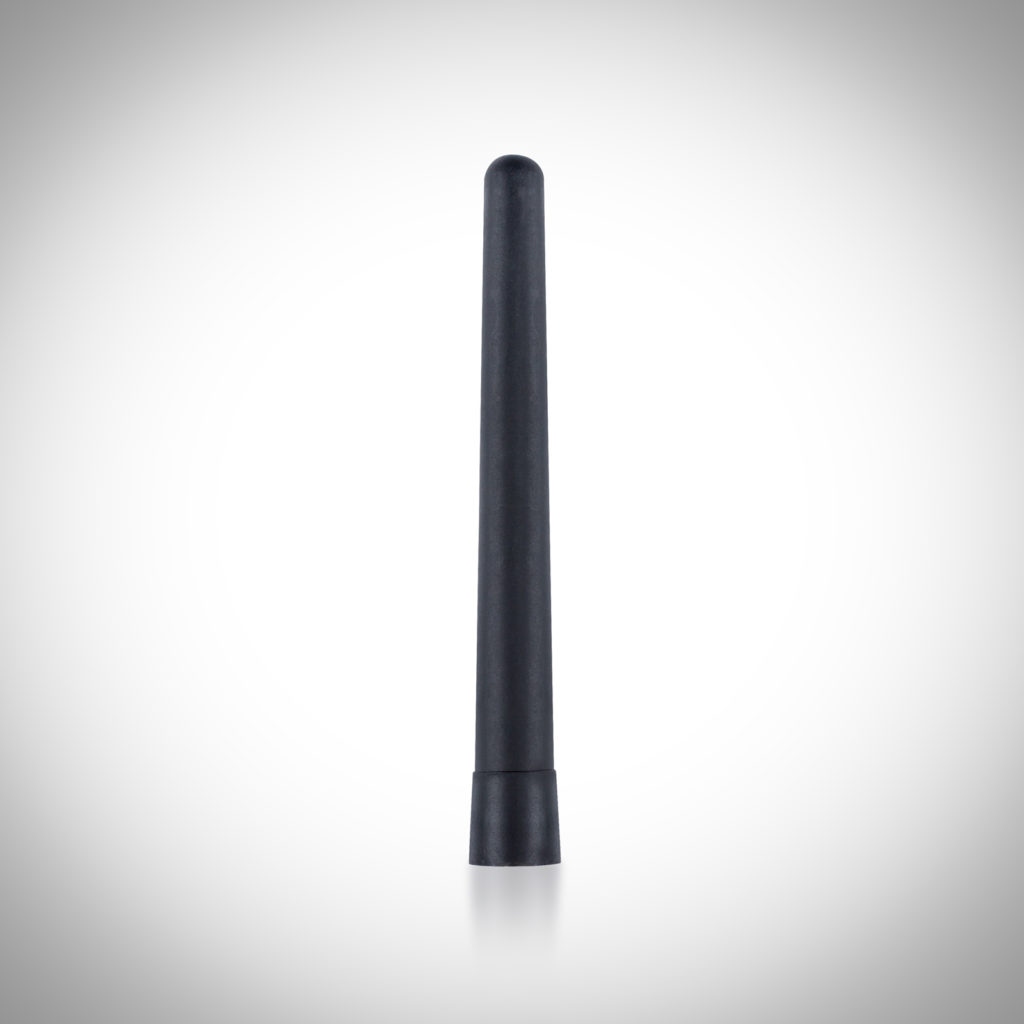

Omnidirectional antenna item no. 10926_OD

Omnidirectional Antenna Art. No.: 10926_OD for 2,4 GHz

Opening angle:	h: 360° v: 60°
Polarization:	Vertical
Antenna gain:	2,5 dB
Protection class (IP):	IP20
Port:	SMA-female
Assembly:	Only assembly directly at DATAEAGLE X-treme
Suitable antenna cable:	–
Optional mounting material:	–
Dimensions in mm:	Length: 110
Scope of delivery:	Antenna
Frequency:	2310 – 2485 MHz

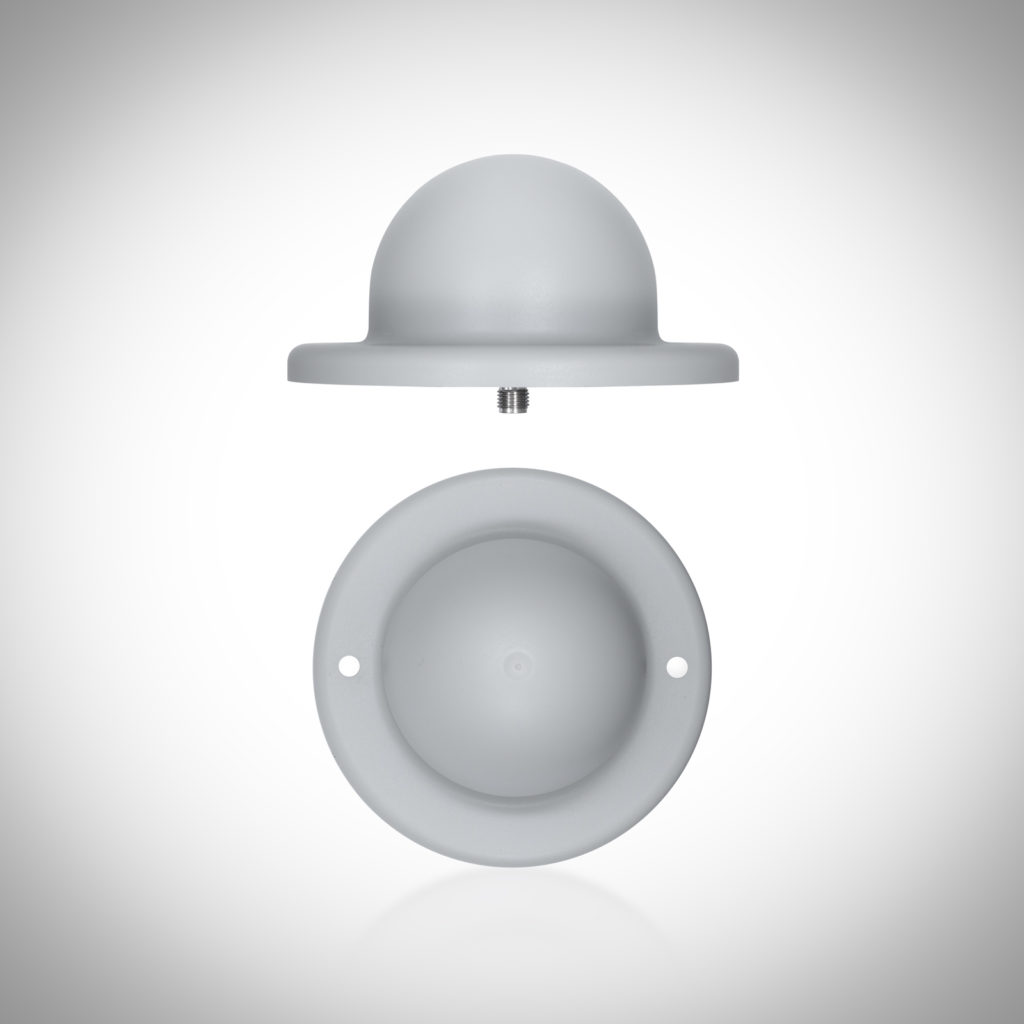

Omnidirectional antenna item no. 10361

Omnidirectional Antenna Art. No.: 10361 for 2,4 GHz

Opening angle:	h: 360° v: 45° Tilt: 20°
Polarization:	Vertical
Antenna gain:	4 dBi
Protection class (IP):	IP20
Port:	SMA-female
Assembly:	In control cabinet
Suitable antenna cable:	10589, 10629, 10279, 10273, 10935, 1028
Optional mounting material:	–
Dimensions in mm:	Height: 43, diameter: 86
Scope of delivery:	Antenna, sealing ring (assembly necessary), mounting material for wall and ceiling assembly
Frequency:	2400 – 2500 MHz

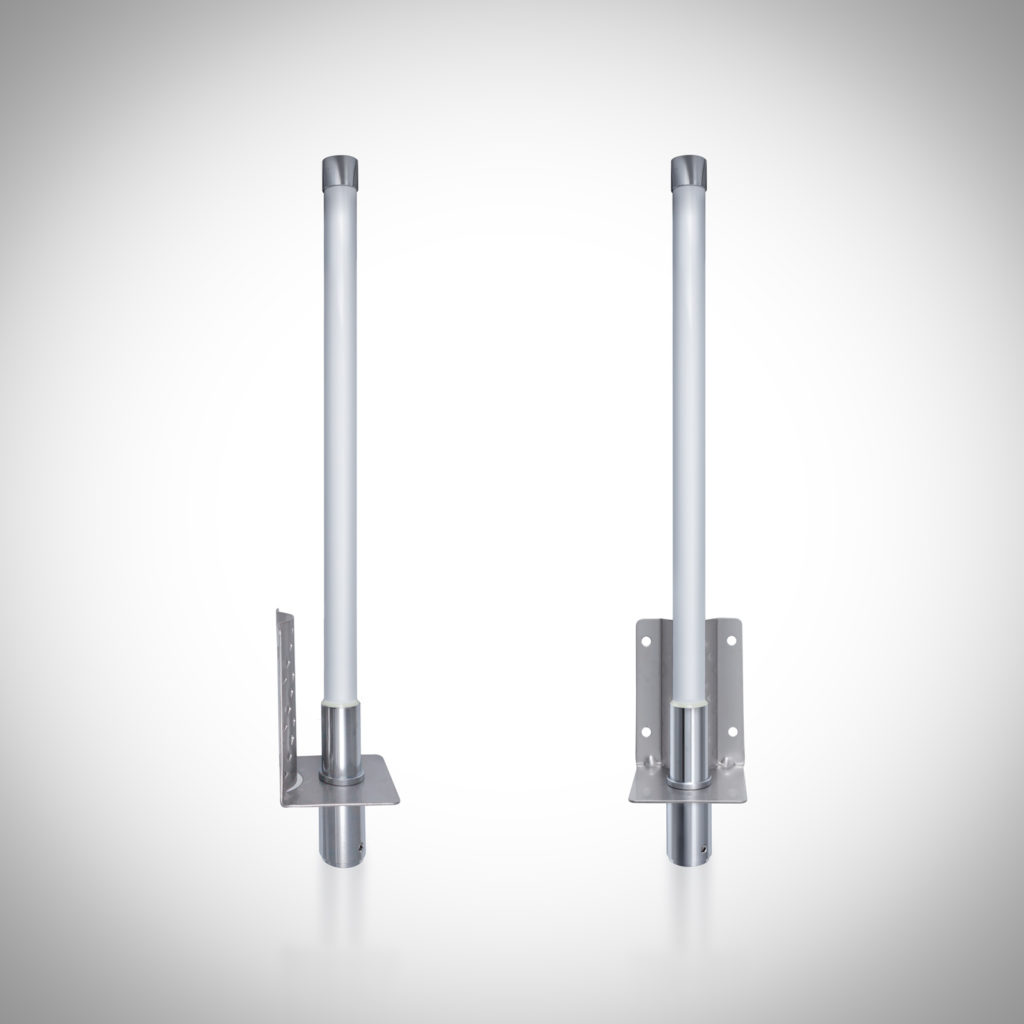

Omnidirectional antenna item no. 10925

Omnidirectional Antenna Art. No.: 10925 for 2,4 GHz

Opening angle:	h: 360° v: 22°
Polarization:	Vertical
Antenna gain:	6 dB
Protection class (IP):	IP67
Port:	N-female
Assembly:	Wall or mast assembly
Suitable antenna cable:	10567, 10667, 10528, 11112, 10535
Optional mounting material:	–
Dimensions in mm:	Length: 400
Scope of delivery:	Antenna, mounting material for wall and mast assembly
Frequency:	2400 – 2500 MHz

Omnidirectional antenna item no. 11126

Omnidirectional Antenna Art. No.: 11126 for 2.4 GHz

Opening angle:	h: 360° v: 120°
Polarization:	Vertical
Antenna gain:	2 dB
Protection class (IP):	IP68
Port:	SMA-female (N-male at antenna)
Assembly:	Article No. 10959 or assembly in control cabinet
Suitable antenna cable:	10589, 10629, 10279, 10273, 10935, 10284
Optional mounting material:	10959 (antenna base for wall mount)
Dimensions in mm:	Length: 75
Scope of delivery:	Antenna rod, antenna base, O-ring, washer, nut
Frequency:	2000 – 2700 MHz

ANTENNA TECHNOLOGY Basics

What does an antenna do? It transmits and receives electro magnetic waves. To transmit, the antenna converts electric energy, for instance from a DATAEAGLE device, into electro magnetic waves. To receive, it works the other way round, converting electro magnetic waves into electric energy. You need to choose the right antenna and to mount it correctly to ensure the best transmission path and thus optimal conditions for data transfer. In this Antenna 101 guide you can find all relevant technical terms explained. Also, we describe the specific antennas suited for different kinds of radio technologies. All antennas are tested and recommended by us. Furthermore you can find an overview over our antenna accessories, important information about antenna mounting together with useful mounting examples.
