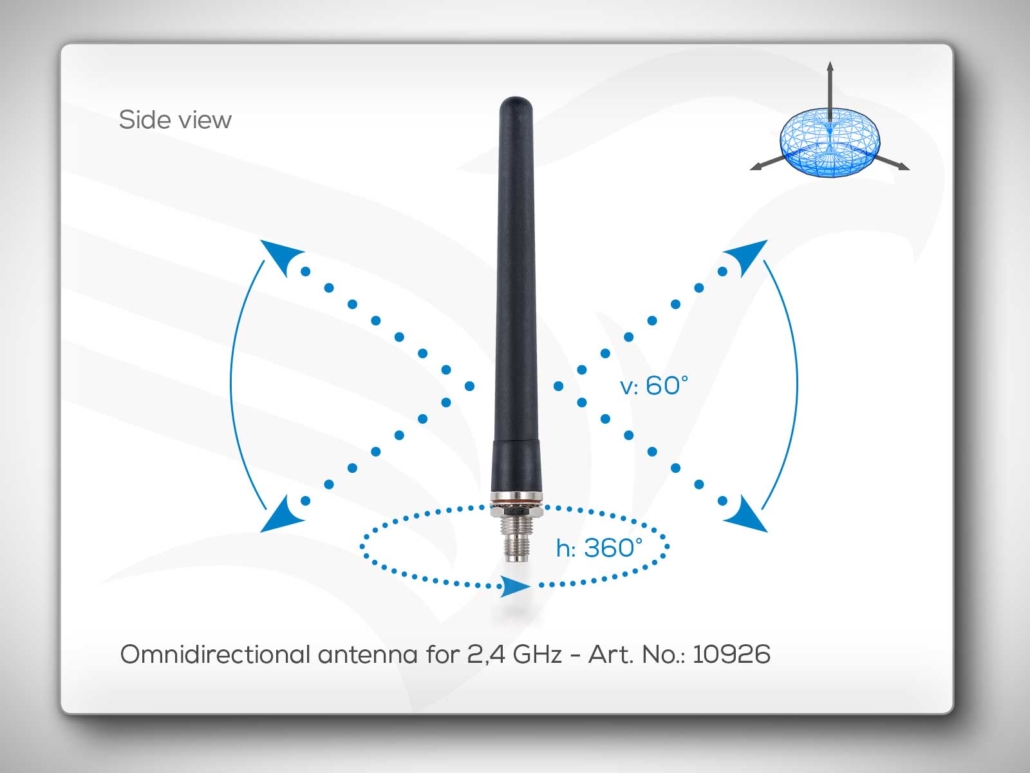

Omnidirectional Antenna 2,4 GHz Art. No.: 10926
| Opening angle | h: 360°, v: 60° |
|---|---|
| Polarisation | Vertical |
| Antenna gain | 2,5 dB |
| IP rating | |
| Port | |
| Mounting | Mounting bracket Art. No.: 10959 or mount on control cabinet |
| Suitable antenna cable | 10248 (SMA-male 10m), 10273 (SMA-male 4m), 10279 (SMA-male 2m), 10589 (SMA-male 0,5m), 10629 (SMA-male 1m), 10935 (SMA-male 6m) |
| Optional mounting material | 10959 (antenna base for wall mount) |
| Dimensions in mm | Length: 110 |
| Scope of delivery | Antenna, Antenna base, Nut, O-Ring, Washer |
| Antenna frequency | 2310 – 2485 MHz |
