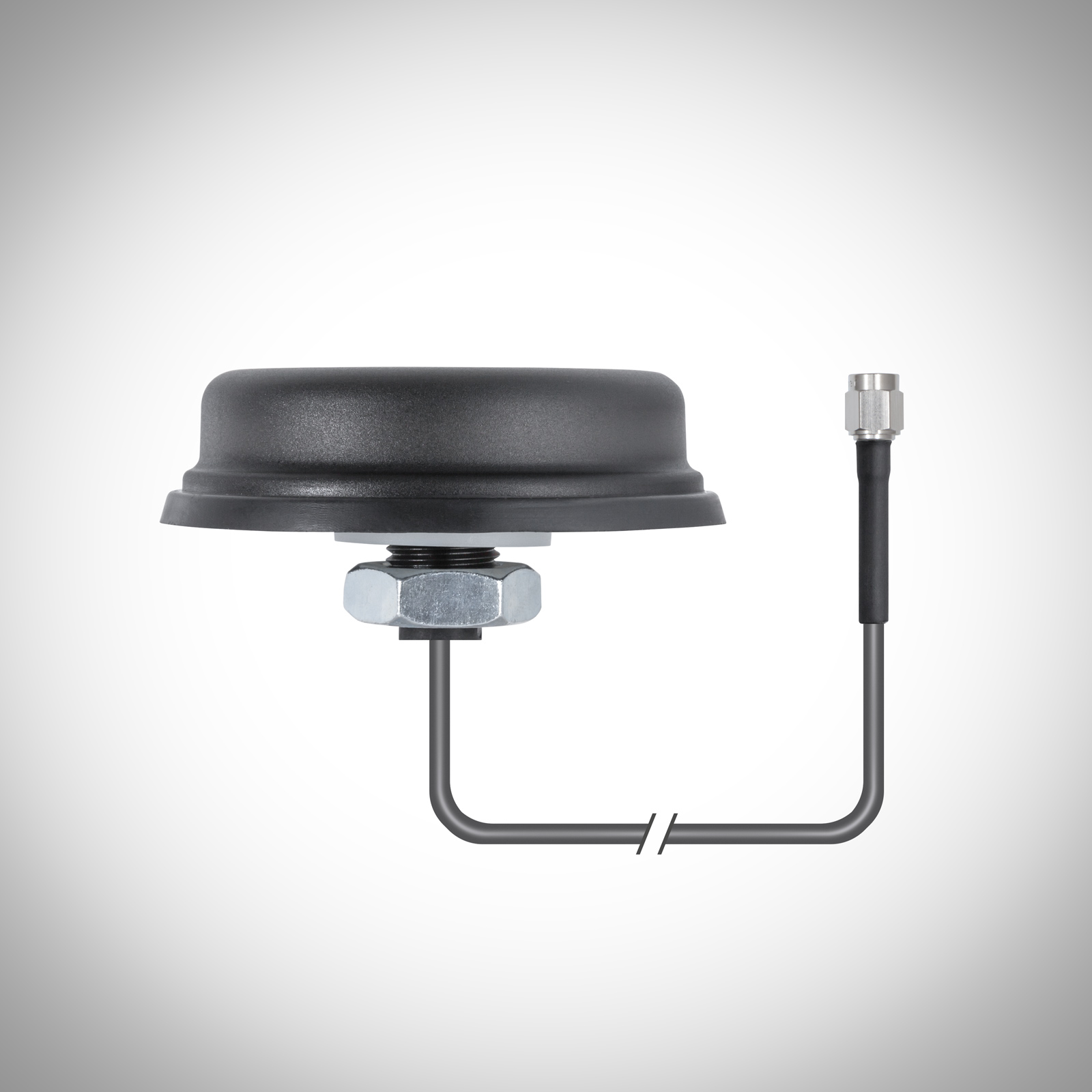

Omnidirectional antenna item no. 10549_SMA
| Opening angle: | h: 360° v: 55° – 75° |
| Polarization: | Vertical |
| Antenna gain: | 0 dBi bis +5 dBi |
| Protection class (IP): | IP69K |
| Port: | 3m cable RG174 with GSM/UMTS – SMA (m) |
| Assembly: | Roof and control cabinet |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 76, diameter: 21 |
| Scope of delivery: | Antenna, 3m antenna cable SMA-male |
| Frequency: | GSM 850 – 2100 MHz UMTS/LTE Band |
Omnidirectional antenna item no. 11085
| Opening angle: | h: 360° v:80° |
| Polarization: | Vertical |
| Antenna gain: | 0 dB |
| Protection class (IP): | IP20 |
| Port: | SMA-male |
| Assembly: | 90° directly at DATAEAGLE compact |
| Suitable antenna cable: | – |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 43 |
| Scope of delivery: | Antenna, angle connector 90° |
| Frequency: | 824 – 960 MHz, 1710 – 1990 MHz |
Omnidirectional antenna item no. 11085_MD
| Opening angle: | h: 360° v:80° |
| Polarization: | Vertical |
| Antenna gain: | 0 dB |
| Protection class (IP): | IP20 |
| Port: | SMA-female |
| Assembly: | 10959 or Assembly on Control cabinet |
| Suitable antenna cable: | 10589, 10629, 10279, 10273, 10935, 10284 |
| Optional mounting material: | – |
| Dimensions in mm: | Height: 43 |
| Scope of delivery: | Antenna with feedthrough |
| Frequency: | 824 – 960 MHz, 1710 – 1990 MHz |
