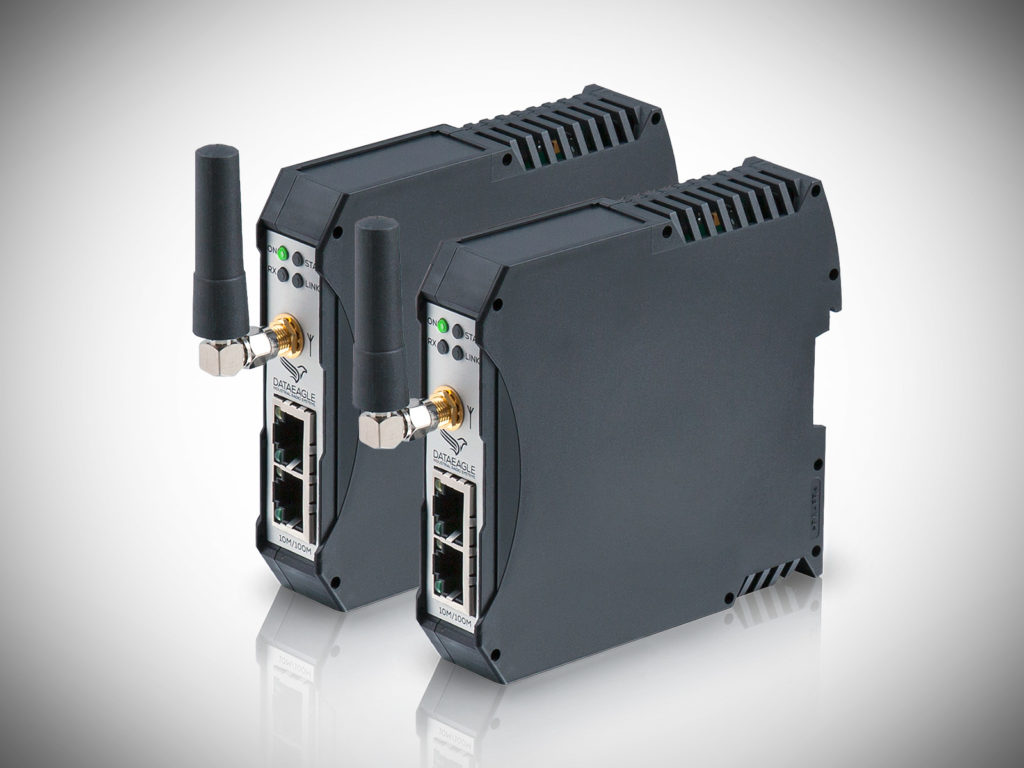

DATAEAGLE Compact 2730

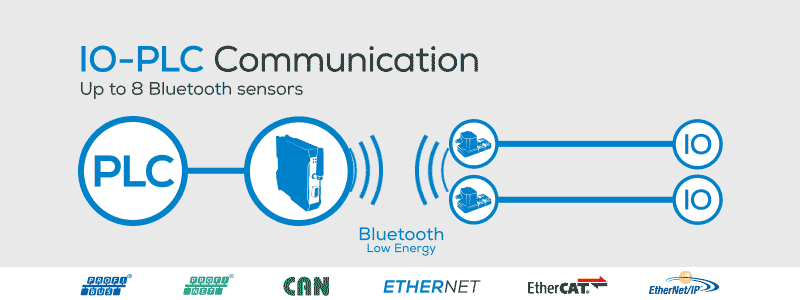

This device functions as a gateway and enables easy wireless communication between sensors/actuators and PLC. It is equipped with Bluetooth Low Energy and is paired with wireless sensors or actuators for data transmission within a range of 70m. The DATAEAGLE X-treme IO 2730 can be used in tandem with the gateway to provide wireless transmission between wired sensors or actuators and the PLC.
The DATAEAGLE Compact 2730 enables wireless transmission of IO signals not only to the controller but also to the cloud server. It is also used in solutions where data must be sent to a local server.
Below are the possible integrations with DATAEAGLE Compact 2730:
- Fieldbus integrations:
- EtherCAT
- Ethernet/IP
- Modbus TCP
- Ethernet POWERLINK
- Profinet IO
- Profibus DP
- CAN
- VARAN
- Sercos
- Cloud (for IoT solutions)
- 3G Welt – 2G 850 MHz / 900MHz / 1800 MHz / 1900 MHz; UMTS B1, B2, B5, B6, B8, B19
- 4G EU – 4G 2100 MHz, 1800 MHz, 2600MHz, 900MHz, 800 MHz; UMTS B2, B8; Fallback 2G 1800 MHz, 900 MHz
- 4G US – 4G 1900 MHz, AWS 1700 MHz, 850 MHz, 700 MHz; UMTS B2/B5
- DATAEAGLE Pi (for transferring data to a local server)
Technical data – DATAEAGLE Compact 2730
| Interface | IO – Fieldbus |
|---|---|
| Protocol | CAN, EtherCAT, Ethernet POWERLINK, Ethernet/IP, Modbus TCP, PROFIBUS, PROFINET, Sercos, VARAN |
| Maximum number of Radio Slaves | 8 |
| Voltage supply | |
| Connection voltage supply | |
| Power consumption | |
| Mounting | DIN rail mounting |
| Conformity | |
| IP rating | |
| Temperature range | |
| Frequency | |
| Typical Distance (m) |
